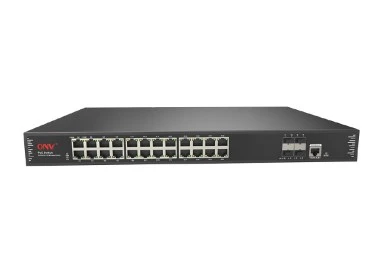

ONV ONV-POE33028PFM PoE Switch

Özellikler

L2+ managed PoE fiber switch with 24* 10/100/1000M RJ45 ports and 4*100/1000M SFP fiber slot ports, Port 1-24 can support IEEE802.3af/at PoE, Built-in 400W power supply.

Teknik Özellikler

Model	ONV-POE33028PFM
Interface Characteristics
Fixed Port	24*10/100/1000Base-T PoE ports (Data/Power)
	4*100/1000Base-X uplink SFP slot ports (Data)
	1 * RS232 console port(115200,N,8,1)
Ethernet Port	10/100/1000Base-T(X), auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port	Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm / 0 ~ 500M, single mode: 1310nm/ 0 ~ 40KM, 1550nm /0 ~ 120KM.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE802.3 10BASE-T
	IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	192Gbps
Forwarding Rate@64byte	41.7Mpps
MAC	8K
Buffer Memory	4.1M
Jumbo Frame	10K
LED Indicator	Power:PWR(yellow), System :SYS(yellow), Network ;Link/Act(yellow), POE: PoE (green), Fiber port: L/A(green)
Reset Switch	Yes, One-button factory reset
PoE & Power Supply
PoE Port	Port 1 to 24 IEEE802.3af/at @ POE
PoE Management	Total power limit of PoE power supply
	PoE output power allocation, off& af &at
	PoE output priority configuration
	PoE working status
	Delay start of power supply
	Scheduling of PoE operation and time
Power Supply Pin	Default 1/2 (+), 3/6 (-)
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	400W (AC100-240V)
Power Consumption	Standby:<18W,Full load:<380W
Power Supply	Built-in power supply, AC 100~240V 50-60Hz 5.0A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	44029044.5mm
Net /Gross Weight	<4.4kg / <5.0kg
Installation	Desktop, 19 inch 1U cabinet
Certification & Warranty
Lightning protection / protection level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC,CE mark, commercial, CE/LVD EN60950,FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Features
Interface	IEEE802.3X (Full-duplex)
	Broadcast storm control based on port speed
	Port real-time traffic management (Flow Interval)
	The speed limit of the message flow in the access port. The minimum particle size is 1Gbps.
Layer 3 Features	L2+ Network management
	IPV4 management
	Static route, Default route @ 128 pcs, APR @ 1024 pcs
VLAN	VLAN based on the protocol
	4K VLAN based on port, IEEE802.1q
	Port configuration of Access, Trunk, Hybrid
Port Aggregation	LACP, Static aggregation
Port Aggregation	Max 14 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Multicast	IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out
Multicast	Multicast VLAN
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based redirection
	Flow-based rate limiting
	Flow-based packet filtering
	8*Output queues of each port
	802.1p/DSCP priority mapping
	Diff-Serv QoS,Priority Mark/Remark
	Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL
	ACL based on port and VLAN
	L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security	IP-MAC-VLAN-Port binding
	ARP inspection,Anti-DoS attack
	AAA & RADIUS,MAC learning limit
	Mac black holes,IP source protection
	Broadcast storm control,Backup for host datum
	SSH 2.0,SSL,Port isolation,ARP message speed limit
	User hierarchical management and password protection
DHCP	DHCP Client,DHCP Snooping,DHCP Server
Management	One-key recovery
	Cable Diagnose,LLDP
	Web Management (HTTPS)
	NTP,System work log,Ping Test
	CPU instant utilization status view
	Console/AUX Modem/Telnet/SSH2.0 CLI
	ONV-NMS - Smart Network Management System Platform (LLDP+SNMP)
	Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3
System	Category 5 Ethernet network cable
	Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
	TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
