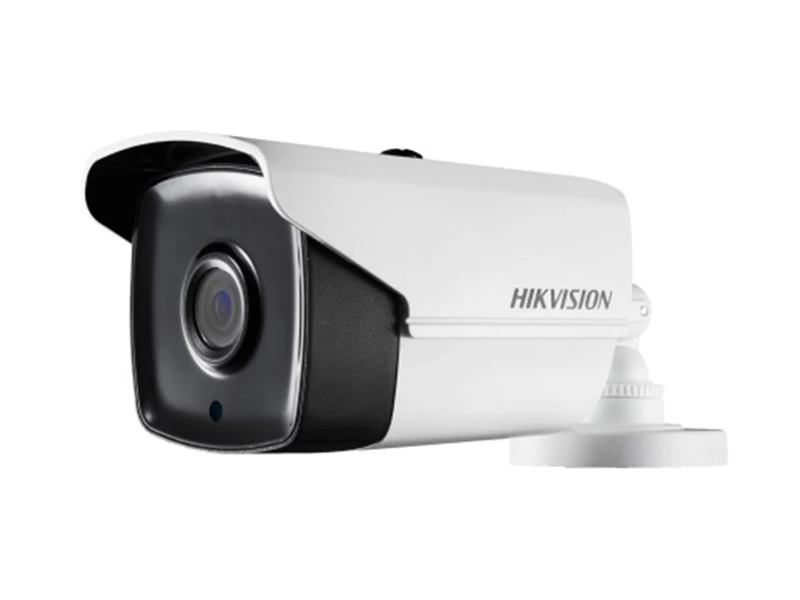

Hikvision DS 2CC12D9T IT3E AHD Bullet Kamera
Özellikler
- 2.0 Megapixel progressive scan CMOS
- Analog HD output, up to 1080P resolution
- OSD menu
- 120dB true WDR
- EXIR 2.0, up to 40/80m IR distance
- IP67
- Up the Coax(HIKVISION-C)
- PoC
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 3.6 mm (Optional 2.8 mm , 6 mm) |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | PAL: 1080p@25fps |
| NTSC: 1080p@30fps | |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| Menu | |
| Voltage Detection | Support |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | ATW/AWC-SET/MANUAL |
| Private Mask | ON/OFF, 8 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| AGC | Support |
| Function | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title |
| Scene | Indoor/outdoor/indoor1/low light |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 V DC ±30%/PoC.af |
| Power Consumption | Max.: 4 W |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" ×8.9") |
| Weight | Approx. 800 g (1.76 lb.) |
Hikvision DS 2CC12D9T IT3E AHD Bullet Kamera Pdf Dosyası743.37 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
