Açıklama

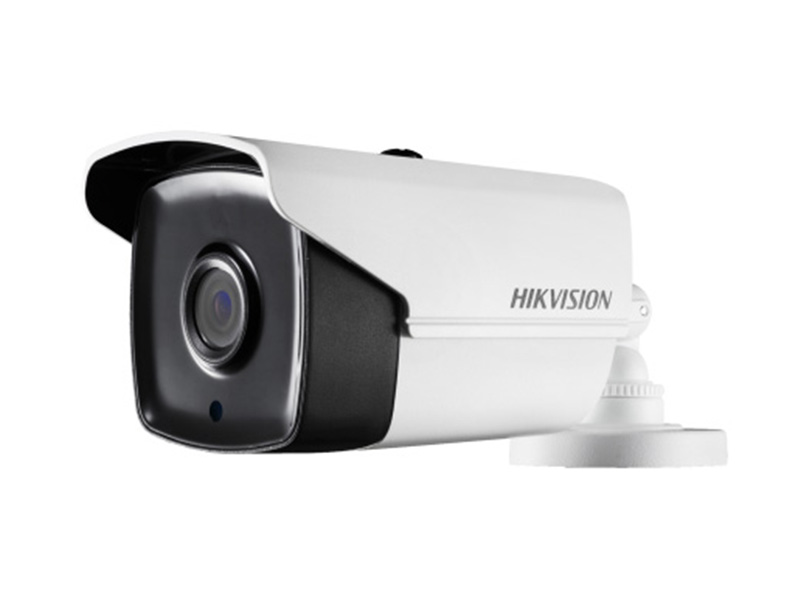

Hikvision DS 2CE16C0T IT3 AHD Bullet Kamera
Özellikler
- 1 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- EXIR technology, up to 20m/40m/80m IR distance
- IP66 weatherproof
- Switchable TVI/AHD/CVI/CVBS
Teknik Özellikler
Camera | |
Image Sensor | 1MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1296(H)x732(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm (2.8mm, 6mm optional), Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm) |
Lens Mount | M12 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 720p@25fps/720p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4W |
Weather Proof | IP66 |
IR Range | Up to 40m |
Dimension | 86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9") |
Weight | 700 g |
Hikvision DS 2CE16C0T IT3 AHD Bullet Kamera Pdf Dosyası660.59 KB
Teknik Kısa
Çözünürlük : 1MP (720P)
