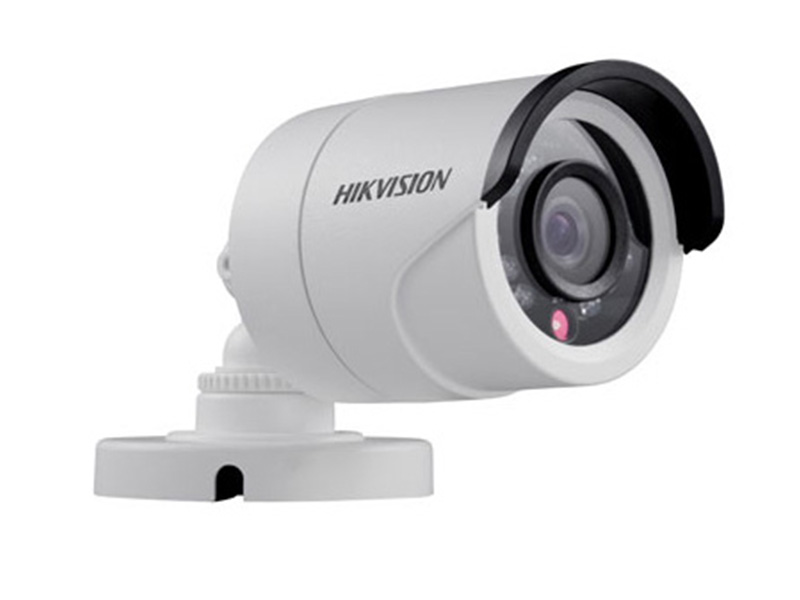

Hikvision DS 2CE16D0T IR AHD Bullet Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- Smart IR
- Up to 20m IR distance
- IP66 weatherproof
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1920(H)*1080(V) |
Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8mm, 3.6mm, 6mm optional |
Lens Mount | M12 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4W |
Weather Proof | IP66 |
IR Range | Up to 20m |
Dimension | Φ70×149.5 mm (Φ2.76” ×5.89”) |
Weight | 400 g |
Hikvision DS 2CE16D0T IR AHD Bullet Kamera Pdf Dosyası646.83 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
