Açıklama

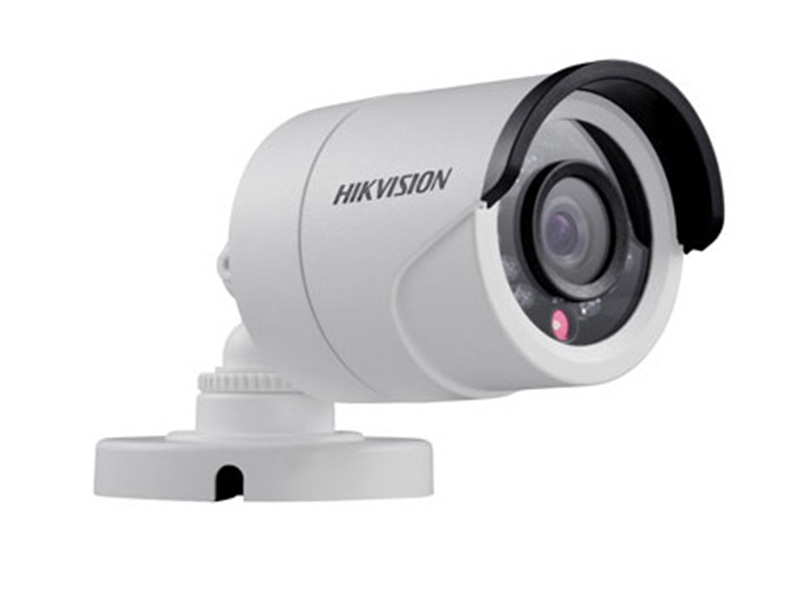

Hikvision DS 2CE16D0T IRPE AHD Bullet Kamera
Özellikler
- 2.0 megapixel high-performance CMOS
- HD analog output, up to 1080p resolution
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- True Day/Night
- Up to 20 m IR distance
- IP66
- PoC.af
- Up the Coax (HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 3.6mm(2.8mm, 6mm optional) |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| General | |
| Material | Plastic |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 V DC ±30%/PoC.af |
| Power Consumption | Max. 4 W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | Φ 70 mm × 154.5 mm (Φ 2.76" × 6.08") |
| Weight | Approx. 400 g (0.88 lb.) |
Hikvision DS 2CE16D0T IRPE AHD Bullet Kamera Pdf Dosyası864.3 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
