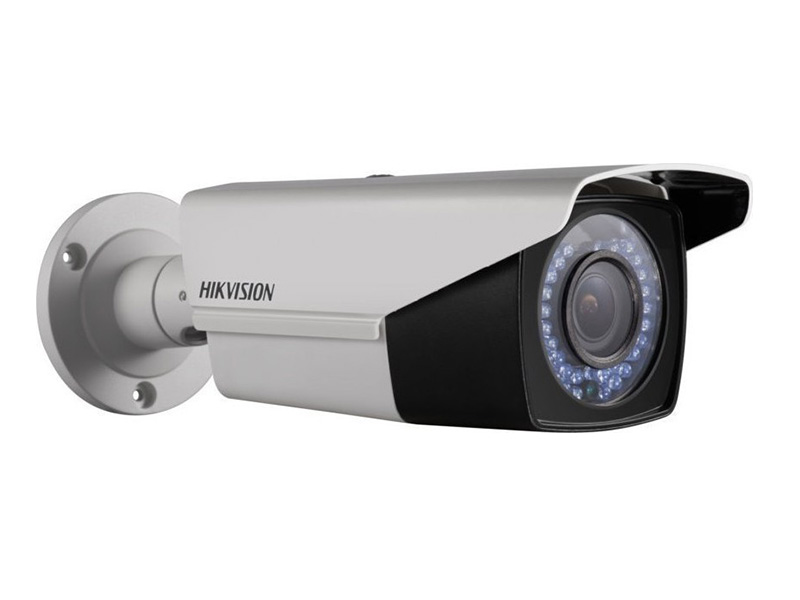

Hikvision DS 2CE16D0T VFIR3F AHD Bullet Kamera
Özellikler
- 2 megapixel high performance CMOS
- Analog HD output, up to 1080p resolution
- Day/Night switch
- Smart IR
- Up to 40 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66
Teknik Özellikler
Camera | |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Image Sensor | 2.0 megapixel progressive scan CMOS |
Signal System | PAL/NTSC |
Effective Pixels | 1920 (H) × 1080 (V) |
Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8 - 12 mm @ F1.4 |
Lens Mount | φ14 |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4 W |
Weather Proof | IP66 |
IR Range | Up to 40m |
Dimension | 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”) |
Weight | Approx. 900g (1.98lb) |
Hikvision DS 2CE16D0T VFIR3F AHD Bullet Kamera Pdf Dosyası808.16 KB
