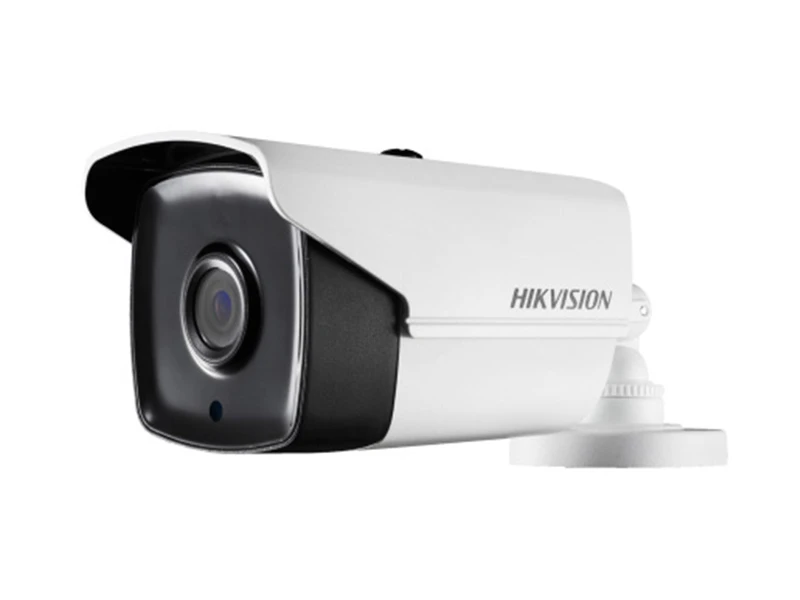

Hikvision DS 2CE16D1T IT5 AHD Bullet Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night, Smart IR
- EXIR technology, up to 20m/40m/80m IR distance
- IP66 weatherproof
- OSD menu
- Up the Coax(HIKVISION-C Protocol)
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1930(H) × 1088(V) |
Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm (6mm, 8mm, 12mm, 16mm optional), Angle of View: 91.3°(3.6mm), 59.9°(6mm), 41.5°(8mm), 26.6°(12mm), 20.6°(16mm) |
Lens Mount | M12 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
Menu | |
Camera ID | On/Off (0-255) |
D/N Mode | Color/ BW/ Auto/ EXT |
Auto White Balance | Auto/User/Push/8000K/6000K/4200K/3000K |
Private Mask | On/Off, maximum 8 zones |
Motion Detection | On/Off, maximum 4 zones |
AGC | Support |
Anti-flicker | On/ Off |
Language | English/Chinese |
Function | Digital noise reduction, Mirror |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 5W |
Weather Proof | IP66 |
IR Range | Up to 80m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) |
Weight | 430 g (0.95 lbs) |
Hikvision DS 2CE16D1T IT5 AHD Bullet Kamera Pdf Dosyası680.84 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
