Açıklama

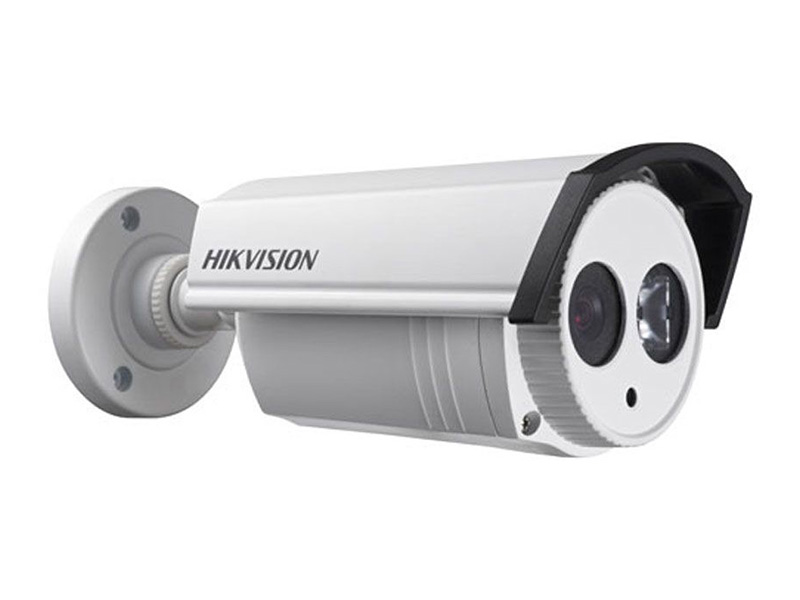

Hikvision DS 2CE16D5T IT3 AHD Bullet Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- True WDR, up to 120dB
- EXIR technology, up to 20m/40m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C, Pelco-C Protocol)
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1944(H)×1092(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) |
Angle of View: 82.6°(3.6mm), 103.5°(2.8mm), 54.4°(6mm), 38°(8mm), 24.4°(12mm), 18.9°(16mm) | |
Lens Mount | M12 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120dB |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
S/N Ratio | More than 62 dB |
Up the Coax | Support |
Menu | |
Camera ID | On/off (15 characters, position programmable) |
D/N Mode | Color/ BW/ EXT |
Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
Private Mask | On / off, maximum 12 zones |
Motion Detection | On/Off, maximum 4 zones |
BLC | On/Off |
AGC | Support |
Anti-flicker | On/ Off |
Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 5W |
Weather Proof | IP66 |
IR Range | Up to 40m |
Dimension | 94.6×83×210.8mm(3.72”×3.27”×8.30”) |
Weight | 700 g (1.54 lbs) |
Hikvision DS 2CE16D5T IT3 AHD Bullet Kamera Pdf Dosyası701.44 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
