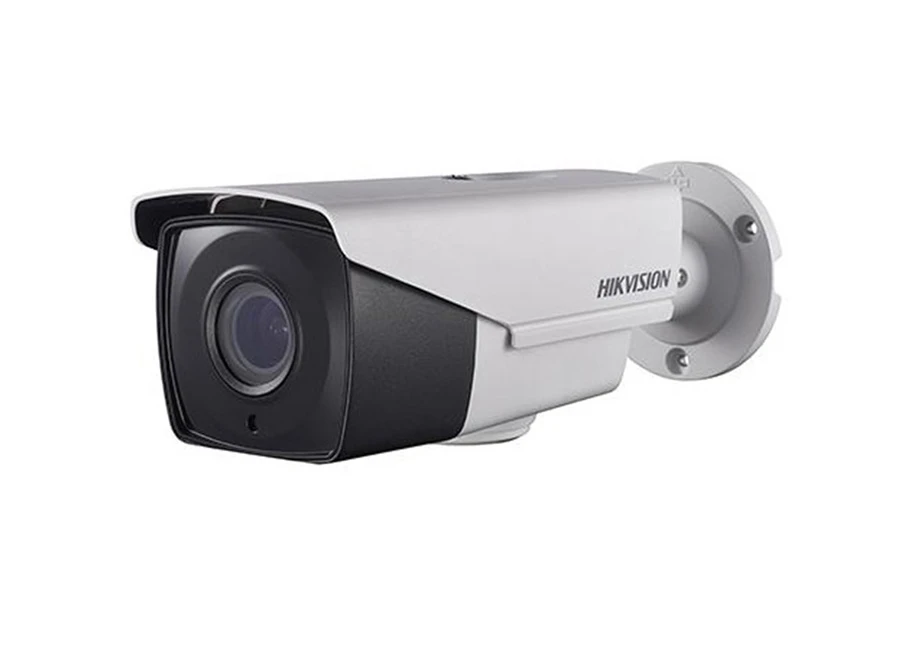

Hikvision DS 2CE16D8T AIT3ZF Turbo HD Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
İşaret Sistem | PAL/NTSC |
Etkin Piksel | 1920(H)*1080(V) |
Min. Illumination | Color 0.005 Lux @ (F1.8 AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8 mm to 12 mm motorized vari-focal lens |
Lens Mount | φ14 |
Ayarlama Aralık | Pan 0 - 360°, Tilt 0 - 90°, Rotation 0 - 360° |
Day& Night | IR cut filter with auto switch |
Geniş Dinamik Aralık | 120dB |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Çıkışı | 1 Analog HD output |
Senkronizasyon | Internal Synchronization |
Coax üzerinden | Support |
Menu | |
Otomatik Beyaz Dengesi | Auto/MWB |
BLC | Support |
AGC | Support |
Dil | English/Chinese |
Function | Brightness, Sharpness, Mirror, Smart IR |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Consumption | Max. 9W |
IR Range | Up to 40m |
Communication | Up the coax |
Protocol HIKVISION-C(Coaxitron) | |
Boyutlar | 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”) |
Ağırlık | Approx. 900g ( 1.98lb) |
Hikvision DS 2CE16D8T AIT3ZF Turbo HD Bullet Kamera Pdf Dosyası999.61 KB
Hikvision DS 2CE16D8T AIT3ZF Turbo HD Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası1.18 MB
