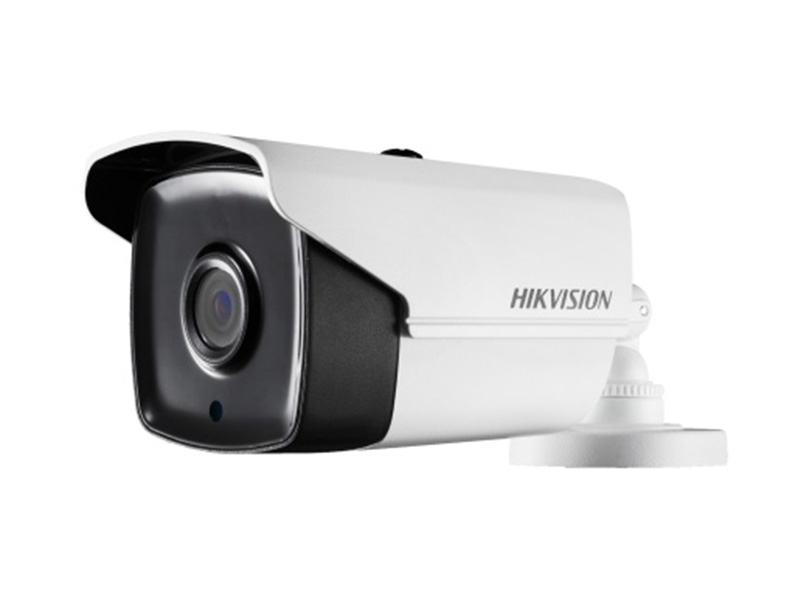

Hikvision DS 2CE1AD8T IT1 AHD Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1920(H)*1080(V) |
Min. Illumination | Color: 0.005 Lux @ (F2.0 AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8 mm, 3.6 mm, 6 mm, 8 mm fixed focal lens |
Lens Mount | M12 |
Adjustment Range | Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120dB |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Up the Coax | Support |
Menu | |
Auto White Balance | Auto/MWB |
BLC | Support |
AGC | Support |
Language | English/Chinese |
Function | Brightness, Sharpness, Mirror, Smart IR |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±25% |
Power Consumption | Max. 3.5 W |
Weather Proof | IP67 |
IR Range | Up to 20m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
Weight | Approx. 680g (1.5lb) |
Hikvision DS 2CE1AD8T IT1 AHD Bullet Kamera Pdf Dosyası738.29 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
