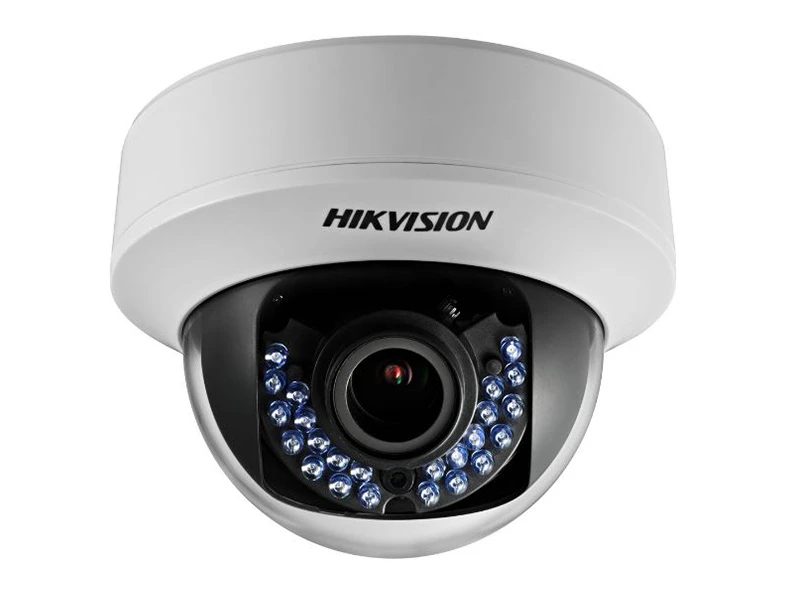

Hikvision DS 2CE56D1T AVFIR AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1930(H) × 1088(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 - 12 mm @ F1.4, Angle of view: 35.1°- 114.5° |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Menu | |
| Camera ID | On/Off (0-255) |
| D/N Mode | Color/ BW/ Auto/ EXT |
| Auto White Balance | Auto/User/Push/8000K/6000K/4200K/3000K |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/Chinese |
| Function | Digital noise reduction, Mirror |
| General | |
| Operating Conditions | -20 °C - 45 °C (-4 °F - 113 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| -A: 12 VDC±15%, 24 VAC±15% | |
| Power Consumption | Max. 3W |
| -A: Max. 4W | |
| IR Range | Up to 30m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | Φ 136 × 101.94 mm (Φ 5.35” × 4.01”) |
| Weight | 600 g |
Hikvision DS 2CE56D1T AVFIR AHD Dome Kamera Pdf Dosyası700.34 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
