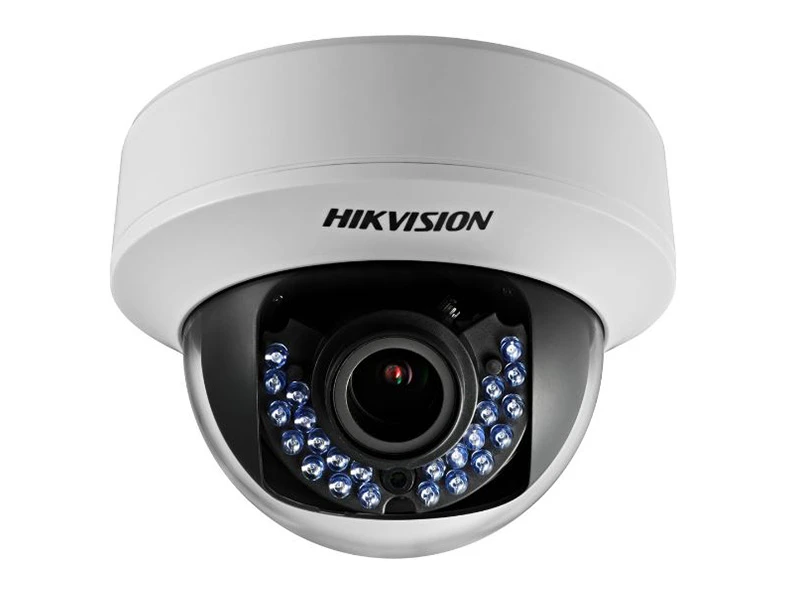

Hikvision DS 2CE56D5T AVPIR3ZH AHD Dome Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- 2.8 – 12mm motorized vari-focal lens
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- True WDR, up to 120dB
- Up to 40m IR distance
- Built-in heater(-H)
- IP66 weatherproof & vandal proof
- Up the Coax(HIKVISION-C, Pelco-C Protocol)
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1944(H)×1092(V) |
Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR | |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | Motorized VF lens; 2.8-12mm @ F1.4 |
Angle of view: 103° - 32.1° | |
Lens Mount | φ14 |
Adjustment Range | Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120dB |
Video Frame Rate | 1080p@25fps/1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
S/N Ratio | More than 62 dB |
Up the Coax | Support |
Menu | |
Camera ID | On/off (15 characters, position programmable) |
D/N Mode | Color/ BW/ EXT |
Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
Private Mask | On/Off, maximum 8 zones |
Motion Detection | On/Off, maximum 4 zones |
BLC | On/Off |
AGC | Support |
Anti-flicker | On/ Off |
Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel |
correction, SMART D-ZOOM | |
Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15%, 24 VAC±15% |
Power Consumption | Max. 6W |
-H: Max. 12W | |
Impact Protection | IK10. |
Weather Proof | IP66 |
Heater | -H: support |
IR Range | Up to 40m |
Communication | Up the coax |
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
Dimension | Φ 145.3 × 124.2 mm (Φ 5.72” × 4.89”) |
Weight | 1350 g |
Hikvision DS 2CE56D5T AVPIR3ZH AHD Dome Kamera Pdf Dosyası702.2 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
