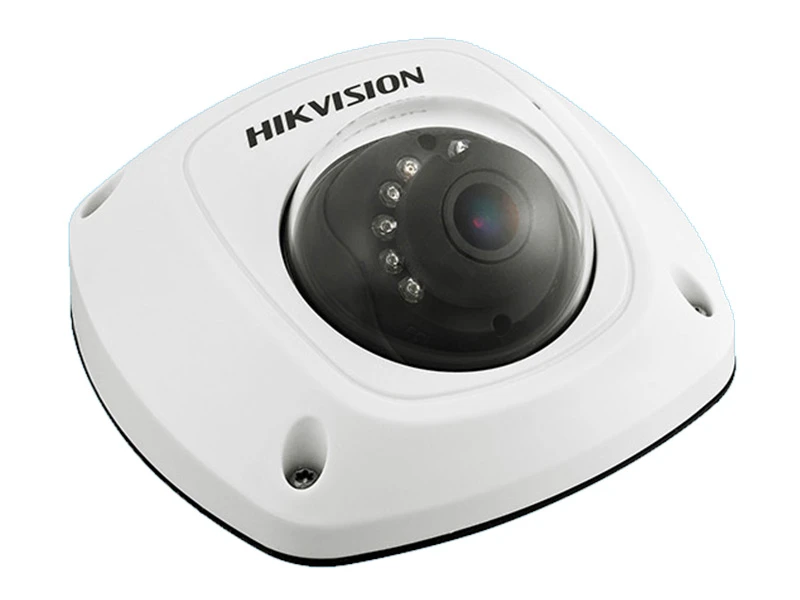

Hikvision DS 2CE56D8T IRS AHD Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1920(H)*1080(V) |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens Mount | M12 |
Adjustment Range | Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120dB |
Video Frame Rate | PAL: 1080p@25fps |
NTSC: 1080p@30fps | |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Up the Coax | Support |
Menu | |
D/N Mode | Auto / Color / B/W |
Auto White Balance | Auto / Manual |
Motion Detection | 4 programmable motion areas |
AGC | Support |
Language | English/Chinese |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±30% |
IR Range | Up to 20m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 97 mm × 99.5 mm × 46.6 mm (3.82" × 3.92" × 1.83") |
Weight | Approx. 300 g (0.66 lb.) |
Hikvision DS 2CE56D8T IRS AHD Dome Kamera Pdf Dosyası791.75 KB
Hikvision DS 2CE56D8T IRS AHD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası729.17 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
