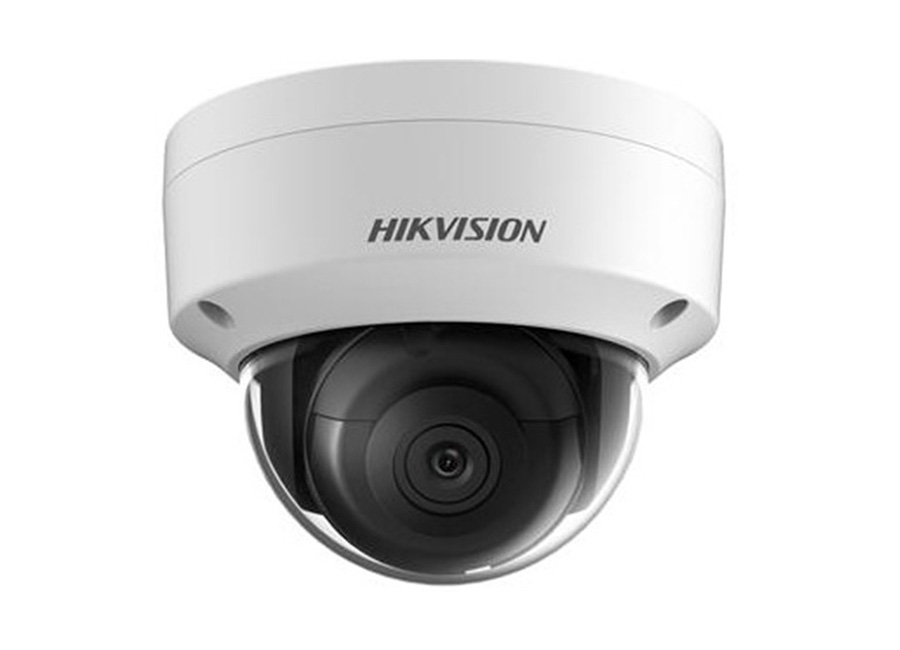

Hikvision DS 2CE56D8T IT3ZF Turbo HD Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 2MP CMOS Image Sensor |
İşaret Sistem | PAL/NTSC |
Etkin Piksel | 1920(H)*1080(V) |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens Mount | φ14 |
Ayarlama Aralık | Pan 0° to 340°, Tilt0° to 75°, Rotate 0° to 355° |
Video Frame Rate | PAL 1080p@25fps |
NTSC 1080p@30fps | |
Senkronizasyon | Internal Synchronization |
Coax üzerinden | Support |
Menu | |
D / N Modu | Auto / Color / B/W |
AGC | Support |
Dil | English/Chinese |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC ±25%, 24 VAC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
IR Range | Up to 60m |
Communication | Up the coax |
Protocol HIKVISION-C(Coaxitron) | |
Boyutlar | Φ 136 mm × 101.9 mm ( Φ 5.35" × 4.01") |
Ağırlık | Approx. 400 g (0.88 lb.), |
-A Approx. 430 g (0.95 lb.) |
Hikvision DS 2CE56D8T IT3ZF Turbo HD Dome Kamera Pdf Dosyası1.05 MB
Hikvision DS 2CE56D8T IT3ZF Turbo HD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.32 MB
