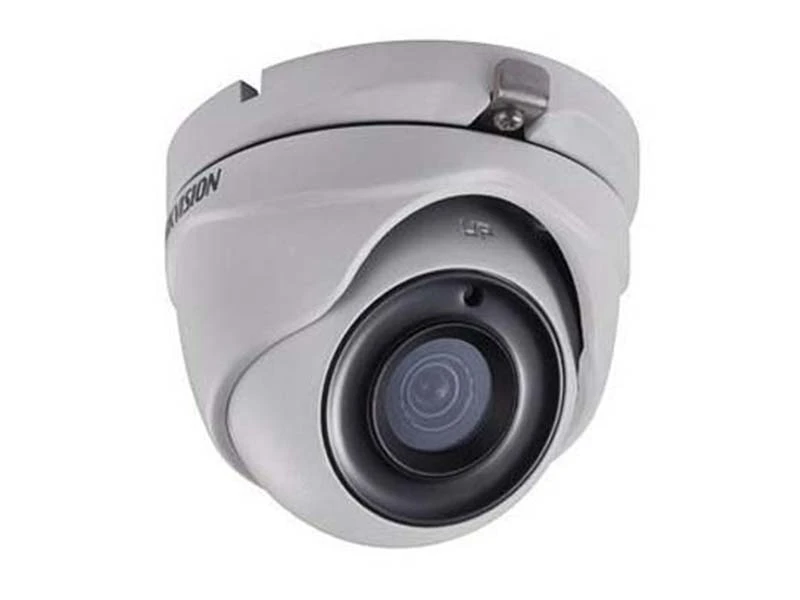

Hikvision DS 2CE56H1T ITM AHD Turret Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.8-12mm motorized vari-focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20m IR distance
- IP67 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens Mount: | M12 |
Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Menu | |
D/N Mode | Auto / Color / B/W |
Auto White Balance | Auto/MWB |
BLC | Support |
AGC | Support |
Language | English/Chinese |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±25% |
Weather Proof | IP67 |
IR Range | Approx 10 to 20 meters |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69") |
Weight | Approx. 350 g (0.77 lb) |
Hikvision DS 2CE56H1T ITM AHD Turret Kamera Pdf Dosyası832.41 KB
