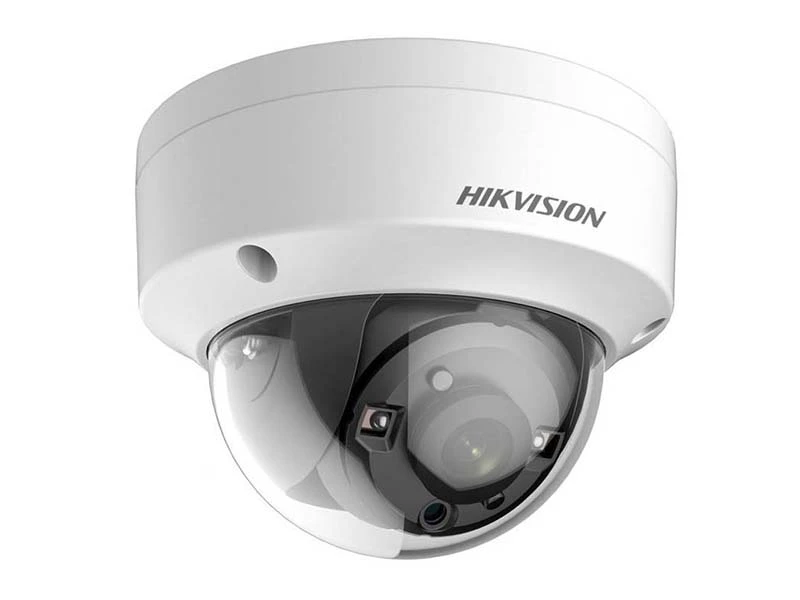

Hikvision DS 2CE57H8T VPITF AHD Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 5 megapixel progressive scan CMOS |
Signal System | PAL/NTSC |
Effective Pixels | 2560 (H) × 1944 (V) |
Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
Lens Mount | M12 |
Adjustment Range | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
Day& Night | IR cut filter |
Video Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC |
Synchronization | Internal Synchronization |
Menu | |
3D DNR (Digital Noise Reduction) | Level 1 to 9 |
D/N Mode | Auto/Color/BW (Black and White) |
Auto White Balance | Auto / Manual |
BLC | Support |
AGC | Support |
WDR | Yes |
Language | English |
Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
Interface | |
Video Out | 1 HD analog output |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±25% |
Impact Protection | IK10. |
Weather Proof | IP67 |
IR Range | Up to 30m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2" ) |
Weight | Approx.500 g (1.10 lb.) |
Hikvision DS 2CE57H8T VPITF AHD Dome Kamera Pdf Dosyası987.69 KB
