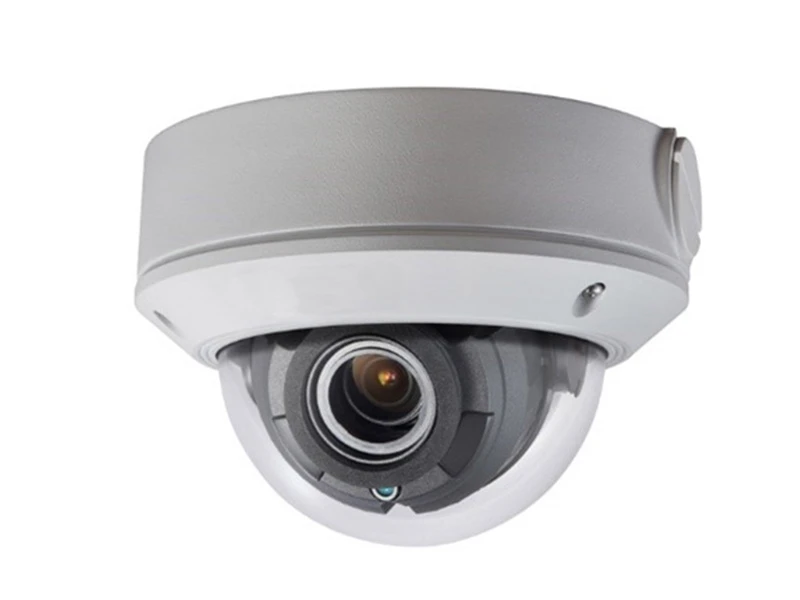

Hikvision DS 2CE5AD0T VPIT3F AHD Dome Kamera
Özellikler
- 2 MP high performance COMS
- 1920 × 1080 resolution
- 2.8 mm to 12 mm varifocal lens
- EXIR 2.0, smart IR, up to 40 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
- Up the coax (HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm to 12 mm |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 355°, Tilt: 0° to 70°, Rotation: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | PAL: 1080p@25fps |
| NTSC: 1080p@30fps | |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Up the Coax | Support |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| Impact Protection | IK10. |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | Ø 141 mm × 99.9 mm (Ø 5.55" × 3.93" ) |
| Weight | Approx. 800 g (1.76 lb.) |
Hikvision DS 2CE5AD0T VPIT3F AHD Dome Kamera Pdf Dosyası813.2 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
