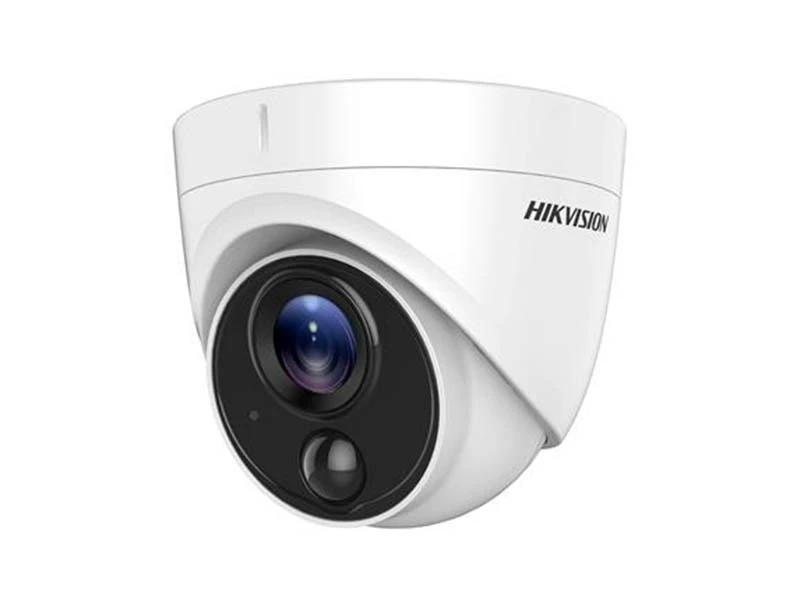

Hikvision DS 2CE71D0T PIRL AHD Dome Kamera
Özellikler
- 2 MP high performance CMOS
- 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- PIR detection, visual alarm
- EXIR 2.0, smart IR, up to 20 m IR distance
- IP67
- Up the coax (HIKVISION-C)
Teknik Özellikler
Camera | |
Image Sensor | 2.0 megapixel progressive scan CMOS |
Signal System | PAL/NTSC |
Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50, 000 s |
NTSC: 1/30 s to 1/50, 000 s | |
Lens | 2.8 mm, 3.6 mm fixed focal lens |
Day& Night | IR cut filter |
Horizontal Resolution | 1920 (H) × 1080 (V) |
Synchronization | Internal Synchronization |
Lens | |
Horizontal Field of View | 103° (2.8 mm), 82.2° (3.6 mm) |
Menu | |
White Light | Alarm/Off |
D/N Mode | Auto/Color/BW (Black and White) |
Auto White Balance | ATW/MANUAL |
AGC | Yes |
Language | English/Chinese |
Function | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
Interface | |
Video Out | 1 HD analog output |
General | |
Visual Alarm | Yes |
PIR Range | Angle: 110°, Range:11 m |
Material | Enclosure: Plastic |
Main body: Metal | |
Ingress Protection | IP67 |
Power Supply | 12 VDC±25% |
IR Range | Up to 20m |
Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
Dimension | Ø 109.8 mm × 89.75 mm (Ø 4.32" × 3.53" ) |
Weight | Approx. 310 g (0.68 lb.) |
Hikvision DS 2CE71D0T PIRL AHD Dome Kamera Pdf Dosyası1003.29 KB
