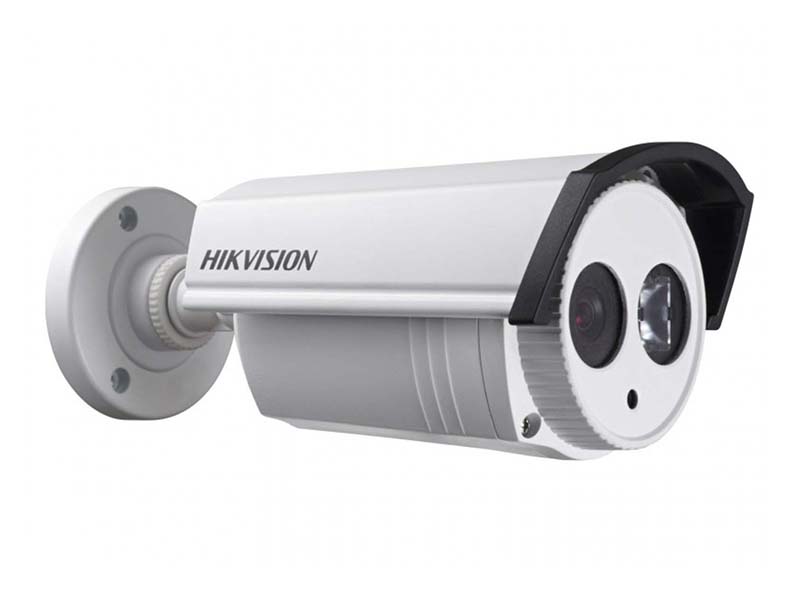

Hikvision DS 2CE16C2T IT1 HD TVI Bullet Kamera
Özellikler
- 1.3 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True day / night, Smart IR
- EXIR technology, 20/40m IR distance
- IP66 weatherproof
Teknik Özellikler
Camera | |
Image Sensor | 1.3MP CMOS Image Sensor |
Effective Pixels | 1280(H)*720(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm (2.8mm, 6mm, 8mm optional) |
Angle of View: | |
78°(3.6mm), 97.3°(2.8mm), 51.2°(6mm), 36°(8mm) | |
Lens Mount | M12 |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 720p@25fps/720p@30fps |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4W |
Weather Proof | IP66 |
IR Range | Up to 20m |
Dimension | 94.6×83×210.8mm(3.72”×3.27”×8.30”) |
Weight | 700 g |
Hikvision DS 2CE16C2T IT1 HD TVI Bullet Kamera Pdf Dosyası687.02 KB
Hikvision DS 2CE16C2T IT1 HD TVI Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası431.27 KB
