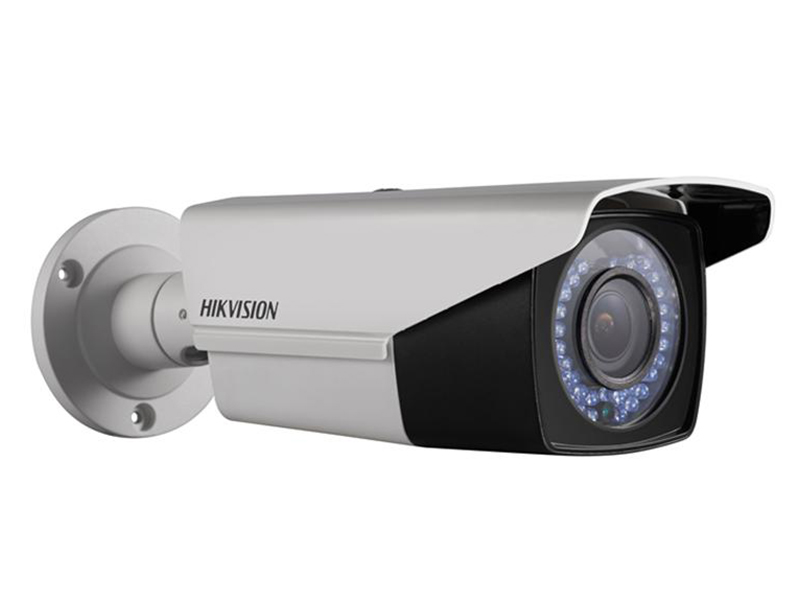

Hikvision DS 2CE16C2T VFIR3 HD TVI Bullet Kamera
Özellikler
- 1.3 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- 2.8 - 12mm vari-focal lens
- DNR, Smart IR
- Up to 40m IR distance
- IP66 weatherproof
Teknik Özellikler
Camera | |
Image Sensor | 1.3MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1280(H)x960(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8-12mm @ F1.4 |
Angle of view: 97° - 30.4° | |
Lens Mount | φ14 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 720p@25fps/720p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
Menu | |
Auto White Balance | Auto / Manual |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4W |
Weather Proof | IP66 |
IR Range | Up to 40m |
Communication | Up the coax |
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
Dimension | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) |
Weight | 1000 g |
Hikvision DS 2CE16C2T VFIR3 HD TVI Bullet Kamera Pdf Dosyası746.49 KB
