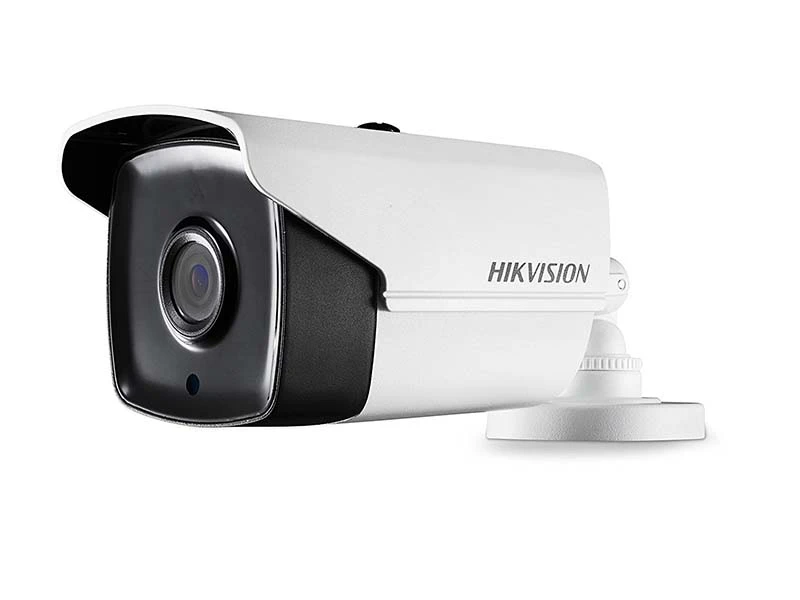

Hikvision DS 2CE16F1T IT5 HD TVI Bullet Kamera
Özellikler
- 3 Megapixel high-performance CMOS
- Analog HD output, up to 3MP resolution
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20/40/80m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
Camera | |
Image Sensor | 3MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 2052(H)*1536(V) |
Min. Illumination | 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm, 6mm, 8mm, 12mm, 16mm optional |
Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm) | |
Lens Mount | M12 |
Adjustment Range | Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 1920 ×1536@18fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
Menu | |
D/N Mode | Color/BW/SMART |
Auto White Balance | Auto/MWB |
BLC | Support |
AGC | Support |
Language | English/Chinese |
Function | Digital noise reduction, Mirror, SMART IR |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 5W |
Weather Proof | IP66 |
IR Range | Up to 80m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
Weight | Approx. 680g (1.5lb) |
Hikvision DS 2CE16F1T IT5 HD TVI Bullet Kamera Pdf Dosyası747.67 KB
