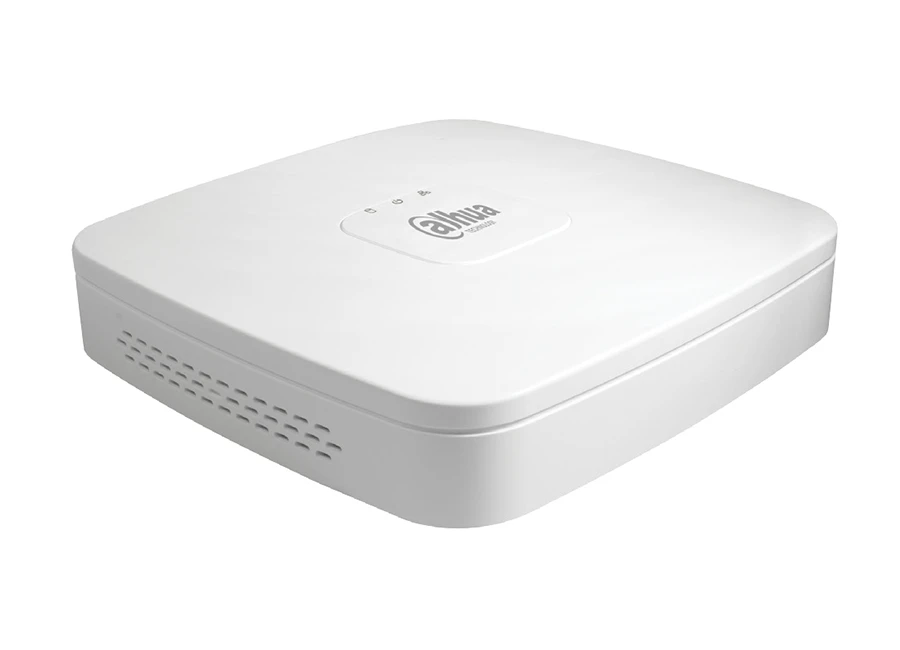

Dahua XVR5104C 4M HDCVI Kayıt Cihazı
Özellikler
- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6 channels IP camera inputs, each channel up to 5MP; Max 24Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
Teknik Özellikler
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 5MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+2 Channel, each channel up to 5MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF |
| Record Rate | Main stream: |
| 4MP/3MP(1-15fps); 1080P/720P/960H/D1/CIF/QCIF (1-25/30fps) | |
| Sub steram:960H(1-12fps); | |
| D1/CIF/QCIF(1-25/30fps) | |
| Bit Rate | 1Kbps - 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 - 60 min (default: 60 min), Pre-record: 1- 30 sec, Post-record: 10 - 300 sec |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 |
| When IP extension mode enabled: 1/4/6 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.42, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Alarm input | Motion Detection, MD Zones: 396 (22 × 18), Video Loss , Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 8TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (2 USB 2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Electrical | |
| Power Supply | DC12V/2A |
| Power Consumption | <10w hdd="" hari="" --10w--=""> |
| Construction | |
| Dimensions | Smart 1U, 205mm×211mm×45mm (8.1“×8.3”×1.8“) |
| Net Weight | 0.55kg (1.2lb) (without HDD) |
| Gross Weight | 1kg (2.2lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C - +55°C (+14°F - +131°F), 0- 90% RH |
| Storage Conditions | -20°C - +70°C (-4°F - +158°F) , 0- 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Certifications | |
| Certifications | FCC: Part 15 Subpart B |
| CE: CE-LVD: EN 60950-1/IEC 60950-1 | |
| CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |
| UL: UL 60950-1 | |
