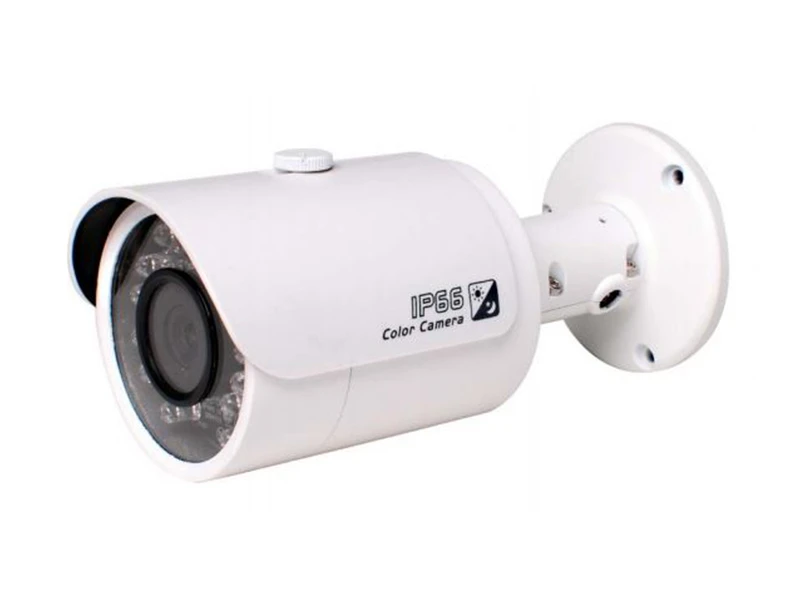

Dahua DH HDC HFW2200S HD SDI Bullet Kamera
Özellikler
- 1/3” 3.0 Megapixel progressive scan CMOS image sensor
- High color reproduction and high sensitivity
- Standard HD-SDI high definition digital interface (SMPT274/292)
- Full 1080P(1920×1080) @ 25/30fps, 720P(1280×720) @ 50/60fps HD-SDI video out
- Built-in Fixed Lens 3.6mm/F1.6 (6mm Optional)
- IR distance Max 20m
- Support ICR true Day/Night
- Support RS485 System parameters configuration
- IP66 Waterproof
- Support DC12V
- Support OSD menu
Teknik Özellikler
| Model | DH-HDC-HFW2200SP | DH-HDC-HFW2200SN |
| Camera | ||
| Image Sensor | 1/3” 3.0 Megapixel progressive scan CMOS | |
| Effective Pixels | 2052 (H)×1536(V) | |
| Electronic Shutter | Auto/Manual, 1/3~1/10,000s | Auto/Manual, 1/4~1/10,000s |
| Mini. Illumination | 0.1LUX/F1.4(Color), 0.01LUX/F1.4(B/W); 0 lux( IR on) | |
| Signal Noise Ratio | >50dB | |
| Gain Control | Auto/Manual | |
| White Balance | Auto/Manual | |
| Day/Night | ICR | |
| Video | ||
| Image Resolution | 25fps @ 1080P(1920×1080)/720P | 30fps @ 1080P(1920×1080)/720P |
| (1280×720); 50fps @ 720P(1280×720) | (1280×720); 60fps @ 720P(1280×720) | |
| Video Format | PAL | NTSC |
| HD-SDI Video Output | 1ch HD-SDI high-definition video
(SMPTE 274/292 standard) | |
| Lens | ||
| Lens | 3.6mm ( 6mm optional) | |
| Auto Iris | Fixed | |
| Mount | Board-in type | |
| Other Interface | ||
| RS485 | System parameters configuration, OSD Menu | |
| Environmental | ||
| IR Distance | Max. 20m | |
| Ingress Protection | IP66 | |
| Power Supply | DC12V | |
| Power Consumption | 3W (6W IR on) | |
| Operating Environment | -10°C~+60°C, 10%~90% | |
| Dimension | ?66mm×160mm | |
| Weight | 0.5kg | |
