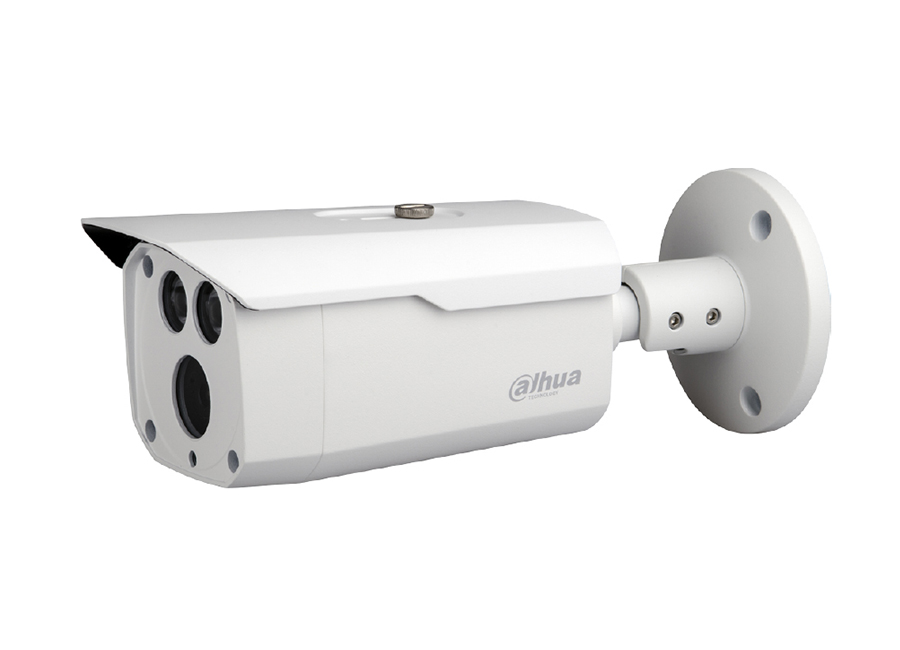

Dahua HAC HFW1200D HDCVI IR Bullet Kamera

Özellikler

* The parameters and datasheets below can only be applied to 1200-S4 series.
Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (6mm, 8mm optional)
Max. IR length 80m, Smart IR
IP67, DC12V

Teknik Özellikler

Camera
Image Sensor	1/2.7" CMOS
Effective Pixels	1920(H)×1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s
Electronic Shutter Speed	NTSC: 1/30~1/100000s
Minimum Illumination	0.02Lux/F1.85, 30IRE , 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 80m (262feet)
IR On/Off Control	Auto / Manual
IR LEDs	2
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm (6mm, 8mm Optional)
Max Aperture	F1.85
Angle of View	H: 87.5°(54.7°/41°)
Focus Control	N/A
Close Focus Distance	900mm (2000mm/3500mm)
Close Focus Distance	35.4'' (78.7''/137.8'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
	DORI	Distance
	Definition
Detect	25px/m	3.6mm: 53m(175ft)
	(8px/ft)	6mm: 80m(262ft)
	(8px/ft)	8mm: 107m(350ft)
Observe	63px/m	3.6mm: 21m(70ft)
	(19px/ft)	6mm: 32m(105ft)
	(19px/ft)	8mm:43m(140ft)
Recognize	125px/m	3.6mm: 11m(35ft)
	(38px/ft)	6mm: 16m(52ft)
	(38px/ft)	8mm:21m(70ft)
Identify	250ppm	3.6mm: 5m(17ft)
	(76px/ft)	6mm: 8m(26ft)
	(76px/ft)	8mm: 11m(35ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360°
	Tilt: 0° ~ 87°
	Rotation: 0° ~ 360°
Video
Resolution	1080P (1920×1080)
Frame Rate	25/30fps@1080P, 25/30/50/60fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	AGC
Noise Reduction	2D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface	N/A
Eelectrical
Power Supply	12V DC ±30%
Power Consumption	Max 5.4W (12V DC, IR on)
Environmental
Operating Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Operating Conditions	* Start up should be done at above -40°C (-40°F)
Storage Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Aluminium
Dimensions	241.8mm×90.4mm×90.4mm (9.52"×3.56"×3.56")
Net Weight	0.59kg (1.30lb)
Gross Weight	0.69kg (1.52lb)
