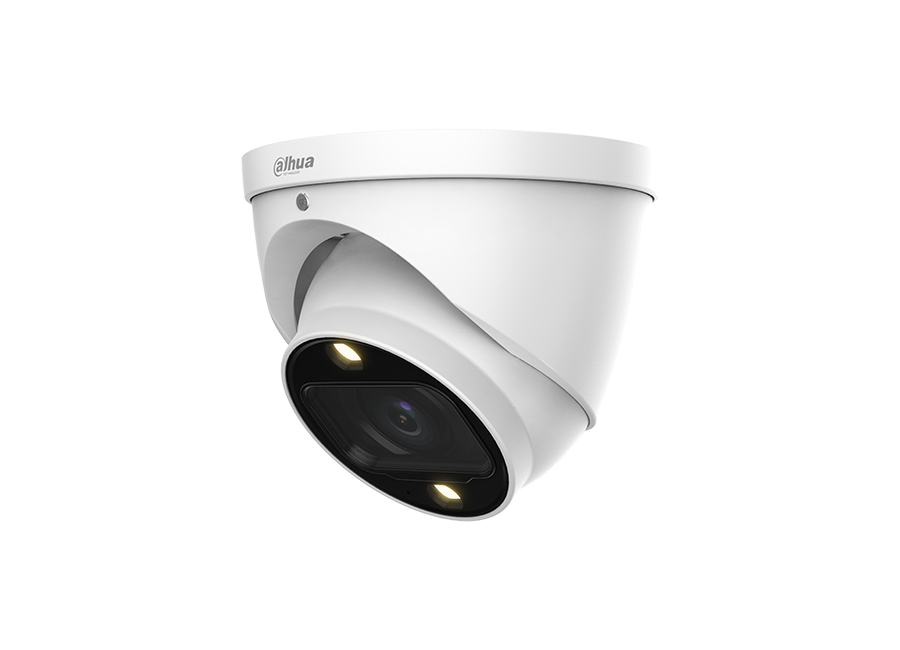

Dahua HAC-HDW1509T-Z-A-LED-DP HDCVI Eyeball Kamera

Özellikler

Max 25 fps@5MP (16:9 video output)
120 dB true WDR, 3DNR
24/7 color imaging
40 m illumination distance
CVI/CVBS/AHD/TVI switchable
Built-in mic
Auto focus, 2.7 mm–13.5 mm motorized lens
IP67, AC 24 V/DC 12 V

Teknik Özellikler

Camera
Image Sensor	5MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/3 s–1/100,000 s
	NTSC: 1/4 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.001 Lux/F1.2, 0 Lux White Light on
Illumination Distance	40 m (132.1 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–78°
	Rotation: 0°–360°
Lens
Lens Type	Motorized Vari-focal
Mount Type	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.2
Field of View	H: 35°–112°;
	V: 19°–58°;
	D: 40–137°
Iris Type	Fixed iris
Close Focus Distance	1.5 m (4.9 ft)
DORI Distance	Lens	Detect	Recognize	Identify
	2.7 mm	65.2 m (213.9 ft)	13 m (42.7 ft)	6.5 m (21.3 ft)
	13.5 mm	186.6 m (612.2 ft)	37.3 m (122.4 ft)	18.6 m (61 ft)
Video
Frame Rate	CVI:
	PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
	NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
	AHD:
	PAL: 4M@25 fps;
	NTSC: 4M@30 fps
	TVI:
	PAL: 4M@25 fps;
	NTSC: 4M@30 fps
	CVBS:
	PAL: 960H;
	NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
BLC	BLC/HLC/WDR/HLC-Pro
WDR	120 dB
White Balance	Auto; Area WB
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart Light	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4,EN60950-1)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in mic
Power
Power Supply	DC12 V±10%;AC24V±25%
Power Consumption	Max 9.9 W (12 V DC, warm light on)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Storage Temperature	–30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Protection Grade	IP67
Structure
Casing	Metal throughout the whole casing
Camera Dimensions	φ122 mm × 104.8 mm (φ4.8" × 4.13")
Net Weight	0.61 kg (1.34 lb)
Gross Weight	0.78 kg (1.72 lb)
