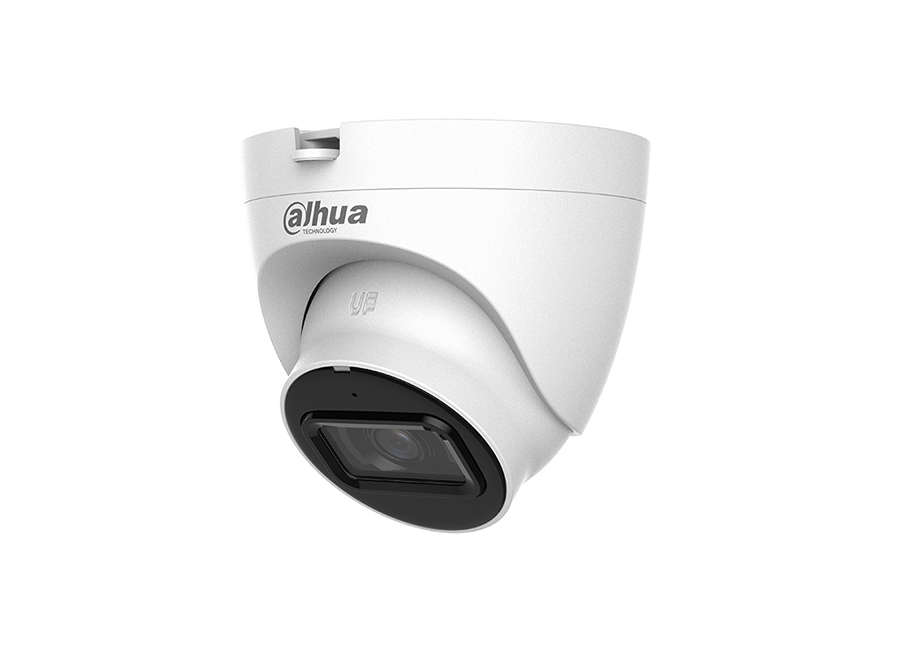

Dahua HAC-HDW1801TLQ(-A) HDCVI Eyeball Kamera

Özellikler

*The parameters and datasheets below can only be applied to 1801-S2 series.

Max. 15 fps@4K.
120 dB true WDR, 3D NR.
Smart IR Illumination.
30 m illumination distance.
Super Adapt
Built-in MIC (-A).
Quick-to-install eyeball saves installation time
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.

Teknik Özellikler

Camera
Pixel	8 MP
Image Sensor	4K CMOS
Max. Resolution	3840 (H) × 2160 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s
	NTSC: 1/30 s–1/100000 s
Min. Illumination	0.01 lux@F2.0 (Color, 30 IRE)
	0.001 lux@F2.0 (B/W, 30 IRE)
	0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	1 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–78°
	Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F2.0
Field of View	2.8 mm: H: 106°; V: 56°; D: 125°
	3.6 mm: H: 88°; V: 46°; D: 105°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.3 m (4.27 ft)
	3.6 mm: 1.9 m (6.23 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	88 m(288.71 ft)	35.2 m(115.49 ft)	17.6 m(57.74 ft)	8.8 m(28.87 ft)
	3.6 mm	106.7 m(350.07 ft)	42.7 m(140.09 ft)	21.3 m(69.88 ft)	10.7 m(35.10 ft)
Video
Video Frame Rate	CVI:
	PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
	NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
	TVI:
	PAL: 4K@15 fps
	NTSC: 4K@15 fps
	AHD:
	PAL: 4K@15 fps
	NTSC: 4K@15 fps
	CVBS:
	PAL: 960H
	NTSC: 960H
Resolution	4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR; HLC-Pro
WDR	120 dB
White Balance	Auto;Area white balance
Gain Control	Auto/Manual
Noise Reduction	3D NR
Smart Illumination	Smart IR
Defog	Electronic defog
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE-LVD: EN 62368-1;
	CE-EMC: EN 55032; EN 55035
	FCC: 47 CFR FCC Part 15, Subpart B;
	UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in MIC (-A)
Power
Power Supply	12 VDC ± 30%
Power Consumption	Max 4.7 W (12 VDC, IR on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing Material	Metal dome + plastic enclosure
Product Dimensions	φ97.1 mm × 92.9 mm (φ3.82" × 3.66")
Packaging Dimensions	121 mm × 118 mm × 109 mm (4.76" × 4.65" × 4.29")
Net Weight	0.21 kg (0.46 lb)
Gross Weight	0.28 kg (0.62 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
