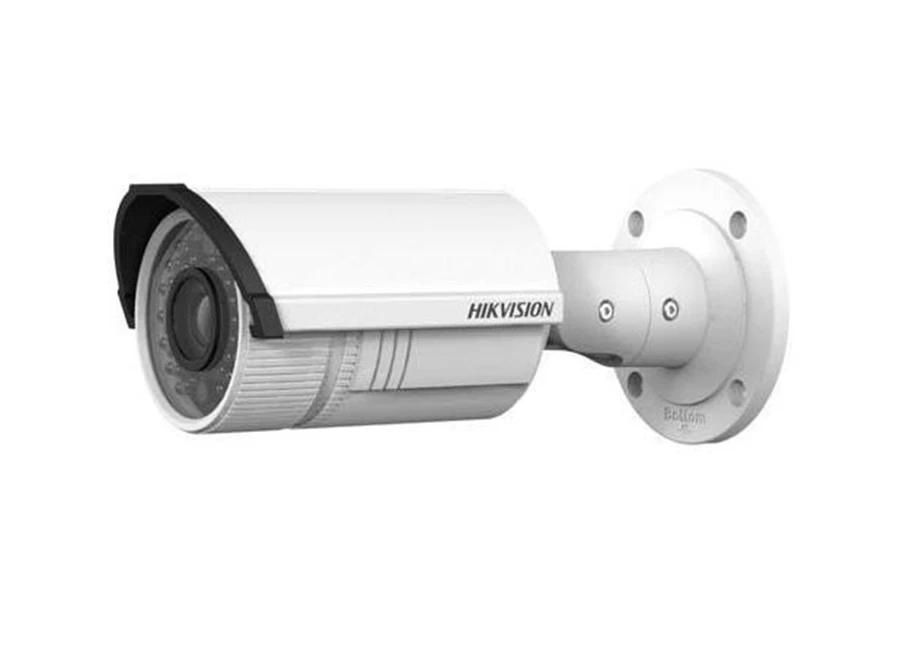

Hikvision DS 2CD2612F I IP Bullet Kamera
Özellikler
- 1.3 megapixel high resolution
- 2.8-12mm vari-focal lens
- 3D DNR & DWDR & BLC
- IP66 rating
- IR range: up to 30m
- Audio and alarm optional
- True day / night
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Minimum Aydınlatma | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Objektif Hızı | 1/3s ~ 1/100,000s |
Lens | 2.8 - 12 mm @ F1.4,Angle of view: 98.4°-30.2° |
Lens Mount | φ14 |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | Digital WDR |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
Video Compression | H.264/MJPEG |
Video bit rate | 32Kbps~12Mbps |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2 |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 1280x960 |
Çerçeve Hızı | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), |
25 fps (640 x 480) | |
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), | |
30 fps (640 x 480) | |
Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
BLC | Yes, zone configurable |
ROI | Support |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
Reset Butonu | Yes |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
GÜç Tüketimi | Max. 5.5 W (Max. 7.5 W with IR cut filter on) |
Weather Proof | IP66 |
IR Range | Up to 30m |
Boyutlar | 95×105×258.6 mm (3.74” × 4.13” × 10.18”) |
Ağırlık | 1200g |
NOT | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
Hikvision DS 2CD2612F I IP Bullet Kamera Pdf Dosyası511.68 KB
Teknik Kısa
Çözünürlük : 1.3MP
