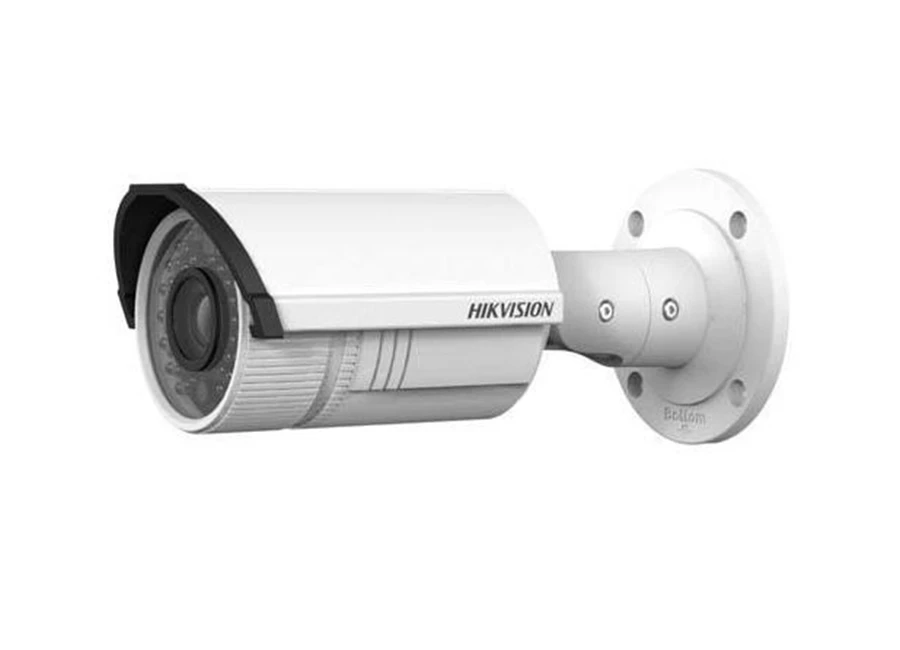

Hikvision DS 2CD2642FWD I IP Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Minimum Aydınlatma | 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR |
Slow shutter | Support |
Objektif Hızı | 1/3 s ~ 1/10,000 s |
Lens | 2.8 - 12 mm @ F1.4 |
Lens Mount | φ14 |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Compression Standard | |
Video Compression | H.264/MJPEG/H.264+ |
H.264 Türü | Main Profile |
Video bit rate | 32Kbps~8Mbps |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2 |
Image | |
Max. Image Resolution | 2688 × 1520 |
Çerçeve Hızı | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) |
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) | |
Görüntü İyileştirme | BLC/3D DNR/ROI |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Gündüz / Gece Anahtarı | Auto/Schedule/Triggered by Alarm In |
Network | |
Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
mask, Watermark, IP address filtering, Anonymous access | |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
GÜç Tüketimi | Max. 5.5 W (Max. 7.5 W with IR cut filter on) |
Weather Proof | IP66 |
IR Range | Approx 20 to 30 meters(65.6-98.4ft) |
Boyutlar | 95×105×258.6 mm (3.74” × 4.13” × 10.18”) |
Ağırlık | 1200g (2.65 lbs) |
NOT | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
Hikvision DS 2CD2642FWD I IP Bullet Kamera Pdf Dosyası697.91 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
