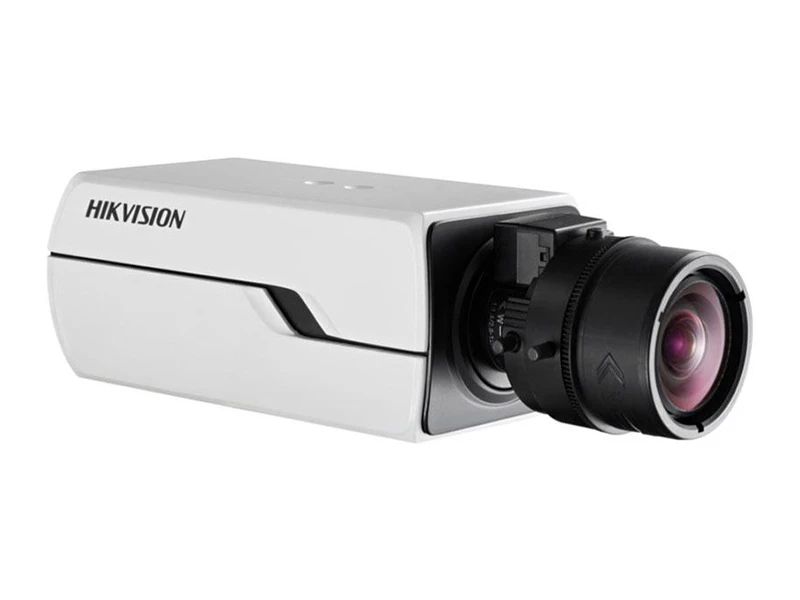

Hikvision DS 2CD4026FWD AP IP HD Box Kamera

Özellikler

1/1.8” Progressive Scan CMOS
Full HD1080p video
Up to 60fps frame rate
Ultra-low light
Slow shutter
120dB WDR
3D DNR
-A: Auto Back Focus
-P: P-Iris
Audio/Alarm IO
Support 128G on-board storage
DC12V/AC24V/PoE

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)
Min. Illumination	B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter time	1s ~ 1/100,000s
Slow shutter	Support
Lens Mount	C/CS mount
Auto Iris	DC drive(-P: support P-Iris)
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	ABF(-A model)
Compression Standard
Video Compression	H.264+/H.264/MPEG4/MJPEG
H.264 code profile	Baseline Profile / Main Profile / High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio bit rate	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 50fps(1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream	Independent with Main Stream and Sub Stream, up to
Third Stream	50Hz: 25fps(1920 × 1080); 60Hz: 30fps (1920 × 1080)
Image Enhancement	BLC/3D DNR/ROI/Defog/EIS
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	Support
Picture Overlay	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch	Auto/Schedule/Triggered by Alarm In
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	User Authentication, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio	1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone
Audio Input	1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone
Audio Output	1-ch 3.5mm audio interface
Communication Interface	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
Alarm	1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Video Output	1Vp-p Composite Output (75 Ω, BNC)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio I/O	Support dual audio track, stereo
Audio Sampling Rate	16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition	Face detection recognition
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	24VAC± 10%, 12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 6 W (Max. 9W with IR cut filter on)
Dimensions	69.8×58×145 mm (2.75” × 2.28” × 5.71”)
Weight	830 g (1.83 lbs)
