Açıklama

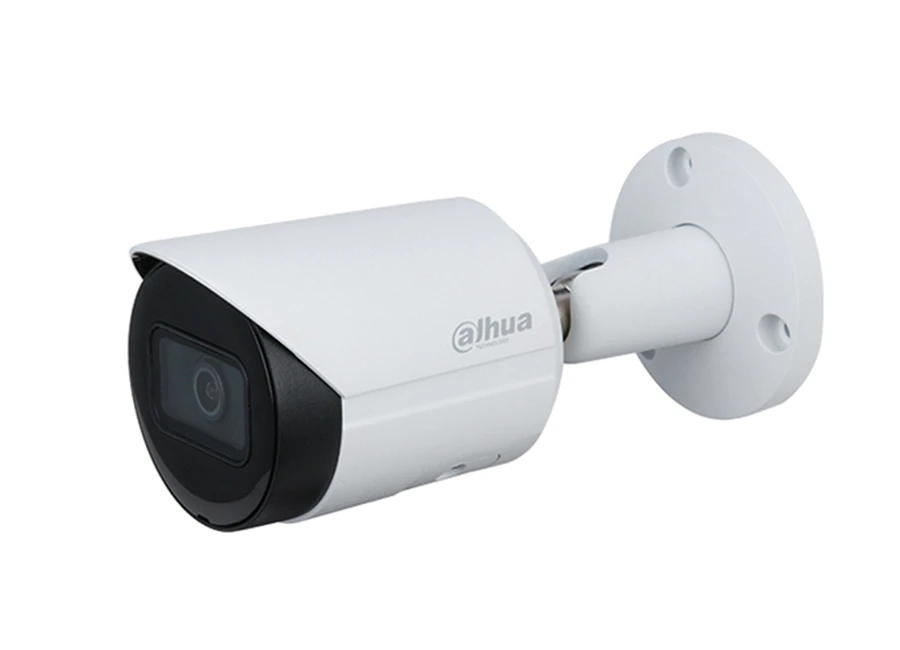

Dahua IPC-HFW2531S-S-0360B-S2 IP Bullet Kamera

Özellikler

1 / 2.7 “ CMOS Sensör
3.6mm Sabit Lens
0.008 Lüx Renkli
20fps@5MP(2592x1944)
BLC/HLC/WDR(120dB), 3DNR, AWB, AGC, ICR
Tripwire (Sanal Sınır), Intrusion (Alan İhlali) Analiz
IP67, PoE, SD Kart Desteği(256GB), Metal Kasa

Teknik Özellikler

Camera
Image Sensor	1/2.7” 5Megapixel progressive CMOS
Effective Pixels	2592 (H) × 1944 (V)
ROM	128 MB
RAM	256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.008 Lux@F1.6
IR Distance	30 m (98.43 ft)
IR On/Off Control	Auto/Manual
IR LEDs Number	1
Pan/Tilt/Rotation Range	Horizonal: 0°–360°
	Vertical: 0°–90°
	Rotation: 0°–360°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.8 mm
	3.6 mm
Max. Aperture	F1.6
	F1.6
Field of View	2.8 mm:
	Horizonal: 103.0°
	Vertical: 71.0°
	Diagonal: 132.0°
	3.6 mm:
	Horizonal: 84.0°
	Vertical: 58.0°
	Diagonal: 110.0°
Iris Type	Fixed aperture
Close Focus Distance	2.8 mm: 0.9 m (2.95 ft)
	3.6 mm: 1.6 m (3.61 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	56 m (183.73 ft)	22.4 m(73.49 ft)	11.2 m(36.75 ft)	5.6 m(18.37 ft)
	3.6 mm	80 m (262.47 ft)	32.0 m (104.99 ft)	16.0 m(52.49 ft)	8.0 m(26.25 ft)
Smart event
General IVS Analytics	Tripwire; intrusion
Video
Video Compression	H.265; H.264; H.264B; MJPEG
Smart Codec	Yes
Video Frame Rate	Main stream:
	2592 × 1944 (1 fps-20 fps)
	2688 × 1520 (1 fps-25/30 fps)
	Sub stream:
	704 × 576 (1 fps-25 fps)
	704 × 480 (1 fps-30 fps)
Stream Capability	2 streams
Resolution	2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32Kbps ~ 8192Kbps
	H.265: 12Kbps ~ 8192Kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Smart IR	Yes
Image Rotation	°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Mirror	Yes
Privacy Masking	4 areas
Network
Network	RJ-45 (10/100 Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability	ONVIF (Profile S/Profile G); CGI; P2P; Milestone; Genetec
User/Host	20
Edge Storage	Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser	IE
	Chrome
	Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certifications	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply	12V DC/PoE (802.3af)
Power Consumption	5.6W
Environment
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67
Structure
Casing	Metal
Dimensions	166.2 mm × Φ70 mm (6.54" × Φ2.76")
Net Weight	0.48 kg (1.1 lb)
Gross Weight	0.57 kg (1.3 lb)
