Açıklama

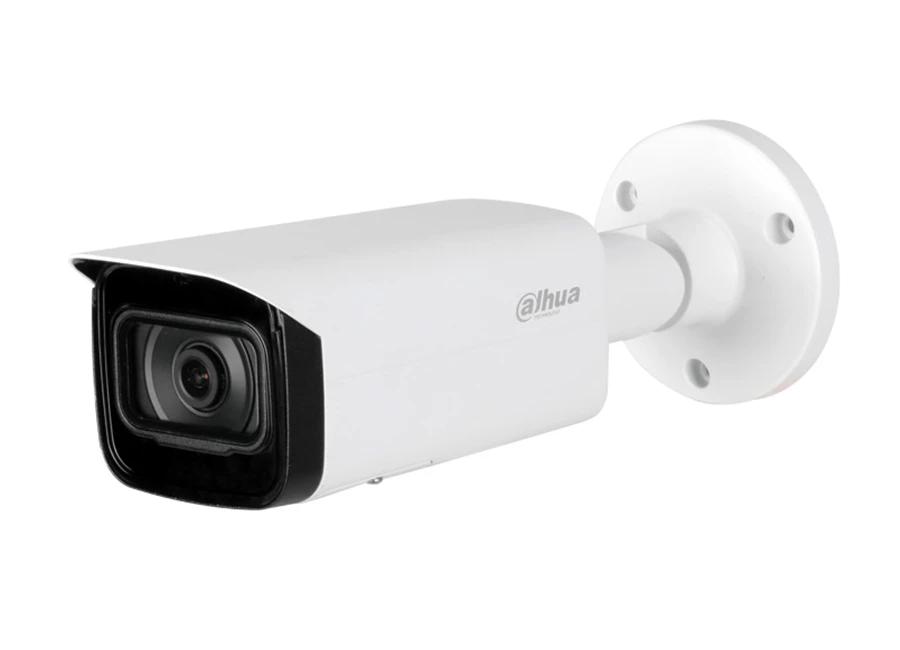

Dahua IPC-HFW5442T-ASE-0280B IP Bullet Kamera
Özellikler
- 1 / 3 “ CMOS Sensör
- 2.8mm Sabit Lens
- 0.002 Lüx Renkli, ePoE destekli (800mt)
- BLC/HLC/WDR (140dB), 3DNR, AWB, AGC, ICR
- Yapay Zeka: Yüz Yakalama
- Çevre Koruması: Tripwire(Sanal Sınır İhlali)
- Intrusion(Alan İhlali)-İnsan ve Araç olarak sınıflandırma
- Kişi Sayma: Çizgisel Kişi Sayma, Bölgesel Kişi Sayma
- Kuyruk Sayma-4 farklı Alan Algılama, Kayıp/Terkedilmiş
- Nesne Algılama, Isı haritası, Hızlı Hareket/Gezinme/Park/Kalabalık Toplanması Algılama
- IP67, IK10, PoE, 25fps@4MP(2688x1520)
- Alarm Giriş/Çıkış: 1/1, Ses Giriş/Çıkış: 1/1
- SD Kart Desteği(256GB), Metal Kasa
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/1.8” 4Megapixel progressive scan CMOS | ||||
| Effective Pixels | 2688 (H) × 1520 (V) | ||||
| RAM/ROM | 512 MB/128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s | ||||
| Minimum Illumination | 0.002 Lux@F1.6 | ||||
| IR Distance | Distance up to 50 m (164 ft) | ||||
| IR On/Off Control | Auto/Manual | ||||
| IR LEDs | 4 | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.8 mm, 3.6 mm, 6.0 mm | ||||
| Max. Aperture | F1.6 | ||||
| Angle of View | H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° | ||||
| Aperture Type | Fixed | ||||
| Close Focus Distance | 1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 58m(190ft) | 23m(75ft) | 12m(39ft) | 6m(20ft) | |
| 3.6mm | 72m(236ft) | 29m(95ft) | 14m(46ft) | 7m(23ft) | |
| 6mm | 113m(371ft) | 45m(148ft) | 23m(75ft) | 11m(36ft) | |
| Pan/Tilt/Rotation | |||||
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚ | ||||
| Artificial Intelligence | |||||
| Face Detection | Support face image capture | ||||
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering | ||||
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection | ||||
| General Intelligence | |||||
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly | ||||
| General Intelligence | Object Abandoned/Missing | ||||
| Heat Map | Yes | ||||
| Video | |||||
| Compression | H.265,H.264,H.264B,H.264H, | ||||
| MJPEG (sub stream) | |||||
| Smart Codec | Yes | ||||
| Streaming Capability | 3 Streams | ||||
| Resulation | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) | ||||
| Frame Rate | Main Stream: 2688 × 1520 (1 fps–25/30 fps) | ||||
| 2560 × 1440 (1 fps–25/30 fps) | |||||
| 1920 × 1080 (1 fps–50/60 fps) | |||||
| Sub Stream : D1 (1 fps 25-30 fps) | |||||
| D1 (1 fps -50/60fps) | |||||
| Third Stream : 1080P (1 fps - 16 fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 32 Kbps–8192 Kbps | ||||
| H.265: 19 Kbps–8192 Kbps | |||||
| Day / Night | Auto (ICR)/ Color /B/W | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 zone rectangle) | ||||
| Region of ınterest | Off/On (4 zone) | ||||
| Electronic Image Stabilization (EIS) | N/A | ||||
| Smart IR | YES | ||||
| Defog | YES | ||||
| Flip | °/90°/180°/270° | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (4 area rectangle) | ||||
| Audio | |||||
| Compression | G.711a, G.711u, G.726, AAC, G.723 | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100 Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P | ||||
| Streaming Method | Unıcast / Multicast | ||||
| Max. User Access | 20 users | ||||
| Edge Storage | NAS: FTP:SFTP | ||||
| Micro SD card 256 GB | |||||
| Web Viewer | IE (versions newer than IE8), Chrome, | ||||
| Firefox, Safari (versions newer than Safari 12) | |||||
| Management Software | Smart PSS, DSS,DMSS | ||||
| Smart Phone | iOS, Android | ||||
| Certifications | |||||
| Certifications | CE-LVD: EN60950-1 | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
| FCC: 47 CFR FCC Part 15, Subpart B | |||||
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
| Interface | |||||
| Audio Interface | 1/1 Channel In/Out | ||||
| RS485 | N/A | ||||
| Alarm | 1 Channel In : 5mA 5V DC | ||||
| 1 Channel Out : 300mA 12V DC | |||||
| Electrical | |||||
| Power supply | DC 12V (±30%), PoE (802.3af) (Class 0) | ||||
| Power Comsumption | 9.5W | ||||
| Environmental | |||||
| Operating Conditions | -30° C to +60° C (-22° F to +140° F)/Less than 95% RH | ||||
| Storage Conditions | -30° C to +60° C (-22° F to +140° F) | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | 244.1mm x 79.0mm x 75.9mm (9.61" x 3.11" x 2.99) | ||||
| Net Weight | 1.08 kg (2.38Ib) | ||||
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Irled : Var
Ses : Var
