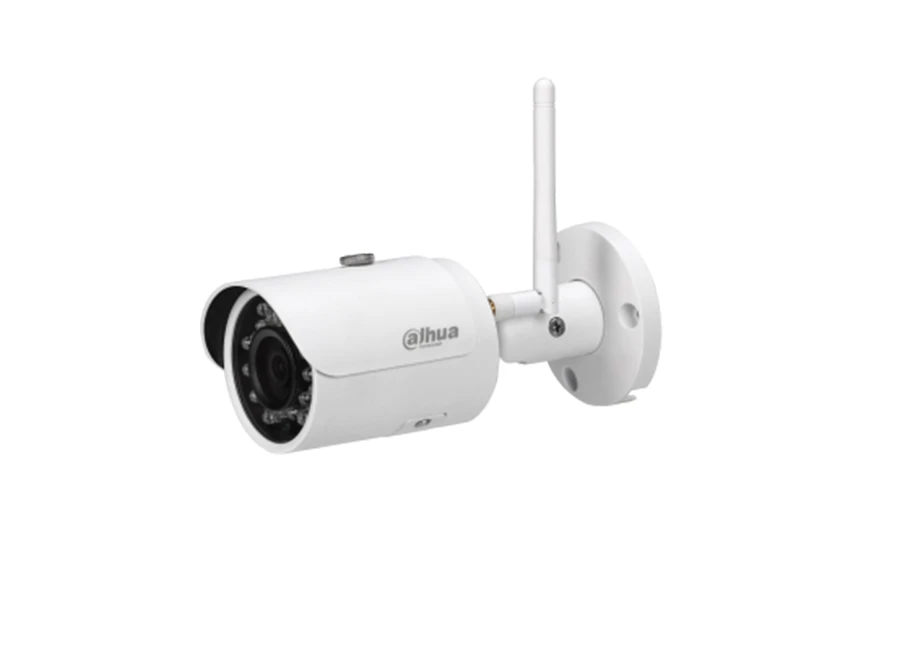

Dahua IPC HFW1435S W IR IP Mini Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/3” 4Megapixel progresive CMOS |
Effective Pixels | 2688(H)x1520(V) |
RAM/ROM | 512MB/32MB |
Scanning System | Progressive |
Minimum Illumination | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 30m(98ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 24 |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8 mm (3.6 mm optional) |
Max. Aperture | F2.0/F2.0 |
Angle of View | H:106°/83°, V:56°/44° |
Focus Control | Fixed |
Close Focus Distance | N/A |
PTZ | |
Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
Video | |
Compression | H.265 / H.264H / MJPEG (Sub Stream) |
Streaming Capability | 2 Streams |
Resolution | 4M(2688×1520)/3M(2304×1296)/ |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/ | |
CIF(352×288/352×240) | |
Frame Rate | 4M(1 ~ 20fps)/3M (1 ~ 25/30fps) |
D1/CIF(1 ~ 25/30fps) | |
Bit Rate Control | CBR/VBR |
Bit Rate | H265:12K ~ 8448Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detetion | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image | Support |
Smart IR | Support |
Digital Zoom | 16x |
Flip | °/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | N/A |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; | |
Bonjour;802.1x;Multicast;ICMP;IGMP; | |
Interoperability | ONVIF, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users/20 Users |
Edge Storage | NAS(Network Attached Storage) |
Local PC for instant recording | |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS,Easy4ip |
Smart Phone | iPhone, iPad, Android Phone |
Certifications | |
Certifications | CE (EN 60950:2000) |
UL:UL60950-1 | |
FCC: FCC Part 15 Subpart B | |
Interface | |
Video Interface | N/A |
Audio Interface | N/A |
RS485 | N/A |
Alarm | N/A |
Electrical | |
Power Supply | DC12V |
Power Consumption | <7.5W |
Environmental | |
Operating Conditions | -10° C ~ +50° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions | -10° C ~ +50° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | N/A |
Construction | |
Casing | Metal+Plastic |
Dimensions | Φ70mm×164.7mm(2.76'x6.49') |
Net Weight | 0.43Kg(0.84lb) |
Gross Weight | 0.52Kg(0.97lb) |
Dahua IPC HFW1435S W IR IP Mini Bullet Kamera Pdf Dosyası752.8 KB
Teknik Kısa
Çözünürlük : 4MP
Irled : Var
