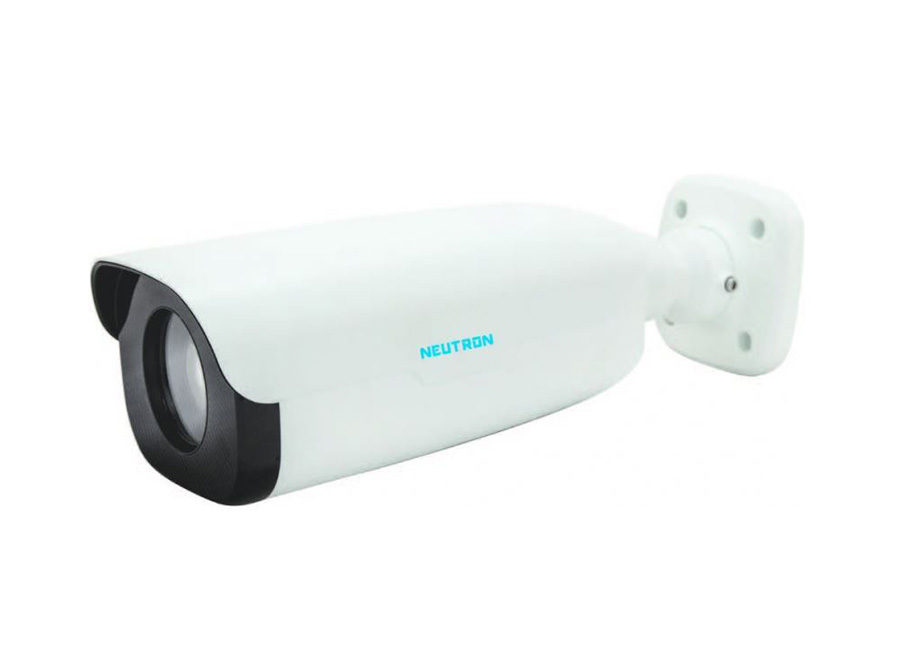

Neutron IPC268ER9 DZ IR IP Bullet Kamera

Özellikler

1/3'' 4K 8 Megapiksel (3840×2160) Cmos Sensör
(3840×2160) @ 30fps
2.8mm-12mm AF Otomatik Fokus Motorize zoom lens
Ultra 265/H.265/H264/MJPEG sıkıstırma özelligi
120dB True WDR , Smart IR Teknolojisi
IP67 standartı desteği

Teknik Özellikler

Camera
Sensor	1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm@F1.6, P-Iris, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	77.8		31.1	15.6		7.8
	12	333.3		133.3	66.7		33.3
Angle of View (H)	118.5° ~ 30.4°
Angle of View (V)	64.0° ~ 16.6°
Angle of View (O)	154.1° ~ 37.4°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.02Lux (F1.6, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55dB
IR Range	Smart-IR, up to 100m (328ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 8MP (38402160), Max 30fps; 2MP (19201080), Max 30fps;
	Sub Stream: 2MP (1920*1080), Max 30fps;
	Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, Up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	2.Oca
Serial Port	1 RS485
Network	1 RJ45, 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power	DC 12V±25%, AC 24V±25%, PoE (IEEE 802.3at)
	Power consumption: Max 13.7W
Dimensions (L × W × H)	305.5 × 104.1 × 97.3mm (12.0” × 4.1” × 3.8”)
Weight	1.65kg (3.6lb)
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	Supported
