Açıklama

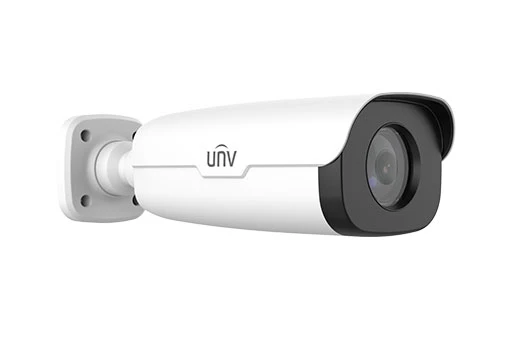

Uniview IPC254EB-DX22GK-I0 IP Bullet Kamera
Özellikler
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams offer more choices for different clients in an integrated solution
- 22X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in heater, support normal start-up at low temperature
- Support optical interface & network interface serial connection, reduce the cost of wiring
Teknik Özellikler
Camera | |||||
Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour:0.001 lux (F1.5, AGC ON) | ||||
0 lux with IR | |||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
WDR | 120dB | ||||
S/N | >52dB | ||||
Lens | |||||
Lens type | 6.5~143mm@F1.5, AF automatic focusing and motorized zoom lens | ||||
Iris | DC-iris | ||||
Field of View (H) | 3.49°~60.47° | ||||
Field of View (V) | 1.97°~36.30° | ||||
Field of View (D) | 4.12°~74.38° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
6.5 | 97.5(319.9ft) | 39.0(128.0ft) | 19.5(64.0ft) | 9.8(32.0ft) | |
143 | 2145.0(7037.4ft) | 858.0(2815.0ft) | 429.0(1407.5ft) | 214.5(703.7ft) | |
Illuminator | |||||
IR Range | Up to 150m (492.1 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; | ||||
Sub Stream: 1080P (1920*1080), Max 30fps; | |||||
Third Stream: D1 (720*576), Max 30fps | |||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Intelligent | |||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, | ||||
User Authentication | |||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8KHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation | ||||
EZLive | |||||
EZView | |||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | 1.1 | ||||
Alarm I/O | 2.1 | ||||
Serial Port | 1 RS485 | ||||
Built-in Mic | N/A | ||||
Built-in Speaker | N/A | ||||
Built-in Heater | Support | ||||
WIFI | N/A | ||||
Network | 1 * RJ45 10M/100M/1000M Base-TX Ethernet + 1 * 100M/1000M SFP | ||||
Video Output | 1 BNC | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) | ||||
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) | ||||
CB (IEC 62368-1:2014) | |||||
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General | |||||
Power | AC24V(±25%), PoE(IEEE 802.3at) | ||||
Power consumption: Max 15.0W | |||||
Power Interface | Wires with cold-pressed terminal | ||||
Dimensions (L x W x H) | 395 x 137 x 112mm (15.6“ x 5.4“ x 4.4”) | ||||
Weight | 3.7kg(8.16lb) | ||||
Working Environment | -40℃~60℃(-40°F ~ 140°F),Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Reset button | Support |
Uniview IPC254EB-DX22GK-I0 IP Bullet Kamera Pdf Dosyası503.79 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
Irled : Var
