Açıklama

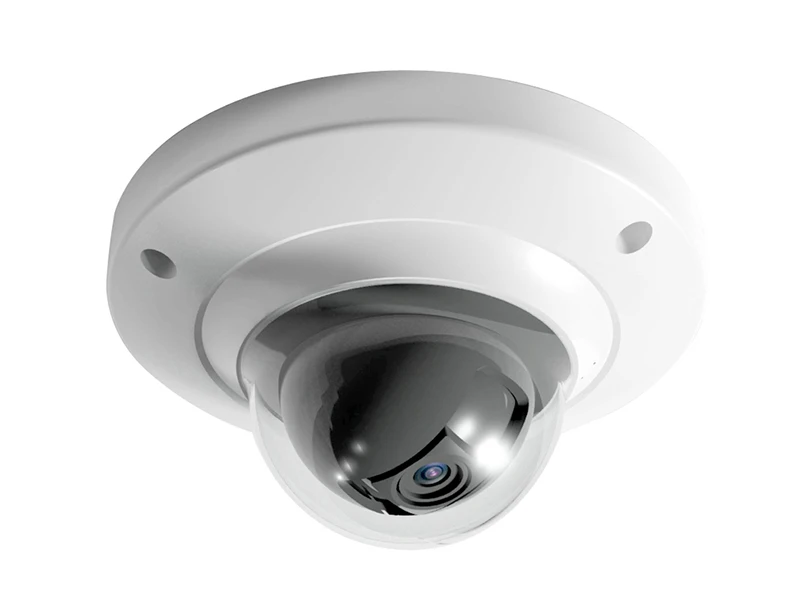

Dahua DH IPC HDB4100CP IP HD Dome Kamera

Çözünürlük : 1.3MP

Depolama : Var

Camera
Image Sensor	1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels	1280(H)x960(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual 1/3(4)~1/10000
Min. Illumination	0.05lux/F1.2(color)
S/N Ratio	More than 50db
Video Output	N/A
Camera Features
Max. IR LEDs Length	N/A
Day/Night	Auto(Electronic)/Color/B/W
Backlight Compensation	Off/BLC/HLC/DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (2.8mm,6mm optional)
Max Aperture	F1.9(F2.0, F1.9)
Focus Control	Manual
Angle of View	H: 70°(89.6°/46°)
Lens Type	Fixed Lens
Mount Type	Board-in Type
Video
Compression	H.264/ MJPEG
Resolution	1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate	Main Stream	1.3M/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a/G.711u/PCM(-A)
Interface	Built-in Mic(-A)
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	1/1 channel In/Out(-A)
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE(802.3af)
Power Consumption	<2W
Working Environment	-20°C~+60°C, Less than 95% RH
Ingress Protection	IK10
Vandal Resistance	IP66
Dimensions	Φ110mm×54mm
Weight	0.25kg
