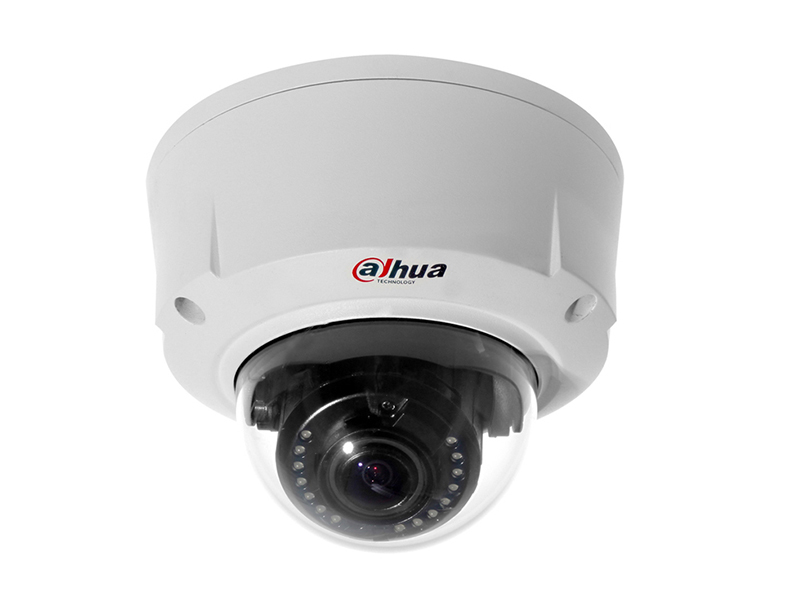

Dahua DH IPC HDB5100 IP HD Dome Kamera
Özellikler
- 1/3” 1.3Megapixel progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps @ 1.3M(1280×960)
- DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.7~9mm varifocal lens
- Built-in 1/1 alarm in/out
- Micro SD memory, IP66, IK10, PoE
Teknik Özellikler
Model | DH-IPC-HDB5100P | DH-IPC-HDB5100N | |
Camera | |||
Image Sensor | 1/3” 1.3Megapixel Aptina CMOS | ||
Effective Pixels | 1280(H)x960(V) | ||
Scanning System | Progressive | ||
Electronic ShutterSpeed | Auto/Manual 1/3~1/10000 | Auto/Manual 1/4~1/10000 | |
Min. Illumination | 0.05lux/F1.4(color), 0.005lux/F1.4 (B/W) | ||
S/N Ratio | More than 50db | ||
Video Output | 1 channel BNC(1.0Vp-p, 75Ω) | ||
Camera Features | |||
Max. IR LEDs Length | N/A | ||
Day/Night | Auto(ICR)/Color/B/W | ||
Backlight Compensation | Off/BLC/HLC/DWDR | ||
White Balance | Auto/Manual | ||
Gain Control | Auto/Manual | ||
Noise Reduction | 3D | ||
Privacy Masking | Up to 4 areas | ||
Lens | |||
Focal Length | 2.7~9mm | ||
Max Aperture | F1.2 | ||
Focus Control | Manual | ||
Angle of View | H: 101°(Wide)~30.4°(Tele) | ||
Lens Type | Manual/Auto Iris (DC) | ||
Mount Type | Board-in Type | ||
Video | |||
Compression | H.264/ MJPEG | ||
Resolution | 1.3M(1280×960)/ D1(704×576) | 1.3M(1280×960) / D1(704×480) | |
Frame Rate | Main Stream | 1.3M (1 ~ 25/30fps) | |
Sub Stream | D1(1 ~ 25/30fps) | ||
Bit Rate | H.264: 16K ~ 8192Kbps | ||
Audio | |||
Compression | G.711a/G.711u(64kbps)/PCM(128kbps) | ||
Interface | 1/1 channel In/Out | ||
Network | |||
Ethernet | RJ-45 (10/100Base-T) | ||
Wi-Fi | N/A | ||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
ONVIF | ONVIF Profile S | ||
Max. User Access | 20 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Auxiliary Interface | |||
Memory Slot | Micro SD, Max 32GB | ||
RS485 | N/A | ||
Alarm | 1/1 channel In/Out | ||
PIR Sensor Range | N/A | ||
General | |||
Power Supply | AC24V/DC12V, PoE(802.3af) | ||
Power Consumption | Max 3W | ||
Working Environment | -20°C~+60°C, Less than 90% RH | ||
Ingress Protection | IK10 | ||
Vandal Resistance | IP66 | ||
Dimensions | Φ151mm×119mm | ||
Weight | 1.25kg |
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
Depolama : Var
