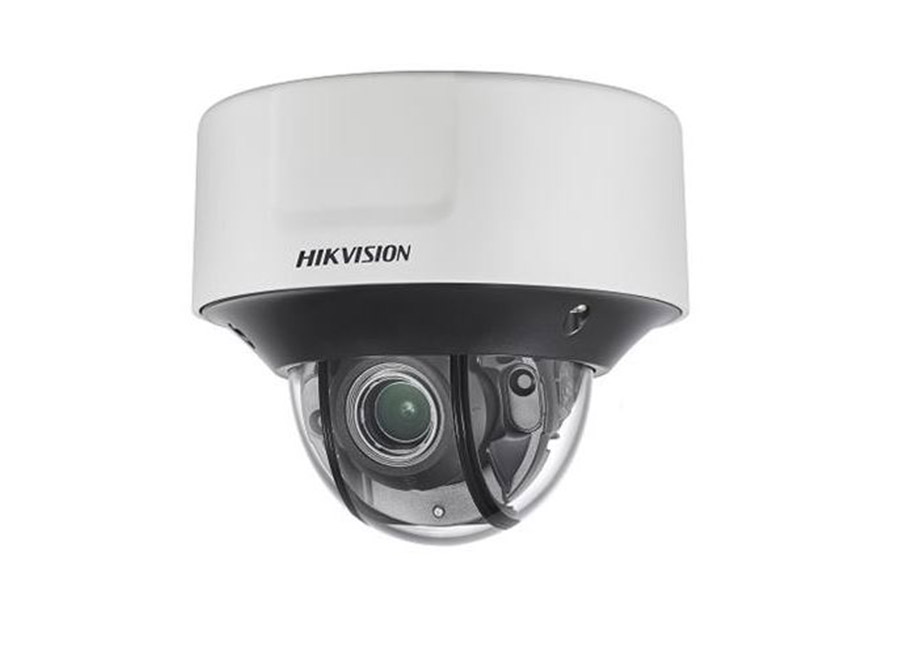

Hikvision DS 2CD7565G0 IZS IP Dome Kamera

Özellikler

1/1.8” Progressive Scan CMOS
3200 × 1800 @ 30fps
Color: 0.007 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264+, H.264
120dB WDR
3D DNR
5 defined streams and up to 5 custom streams supported
On-board storage up to 256 GB
IK10, IP67

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.007 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8 to 12 mm
Lens Mount	Integrated
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Digital noise reduction	3D DNR
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	256Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/128-768Kbps(PCM)
Dual Stream	Yes
Triple Streams	Yes
Frame Rate	50Hz: 25fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720)
Frame Rate	60Hz: 30fps (3200 × 1800, 3072 × 2048, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:	50Hz: 25fps (704 × 576, 640 × 480)
Sub Stream:	60Hz: 30fps (704 × 480, 640 × 480)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, Defog, EIS
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping	Yes
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis	Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,etc.
Face Capture	Face detection performance: up to 30 faces per frame
Face Capture	Detectable face position:͗ supports swing left and right from -65° to 65°, tilt up and down from -45° to 45
Interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port
Audio	1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm	1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)
Alarm Input	1
Alarm Output	1
Video Output	1Vp-p composite output (75 Ω/CVBS)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio I/O	support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, defocus detection
Recognition	Face Detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range	Up to 30 m
Operation Condition	-IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
Operation Condition	-IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 20%, two-core terminal block
Power Supply	PoE (802.3at, class 3): 42.5 V to 57 V
Power Consumption	-IZS:
	With extra load: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	Without extra load: 12 VDC, 1.1 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	-IZHS:
	With extra load: 12 VDC, 1.5 A, max. 18 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	Without extra load: 12 VDC, 1.3 A, max. 16 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)
Dimensions	With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight	Camera: 1450 g (3.20 lb.)
Weight	With package: 1950 g (4.30 lb.)
