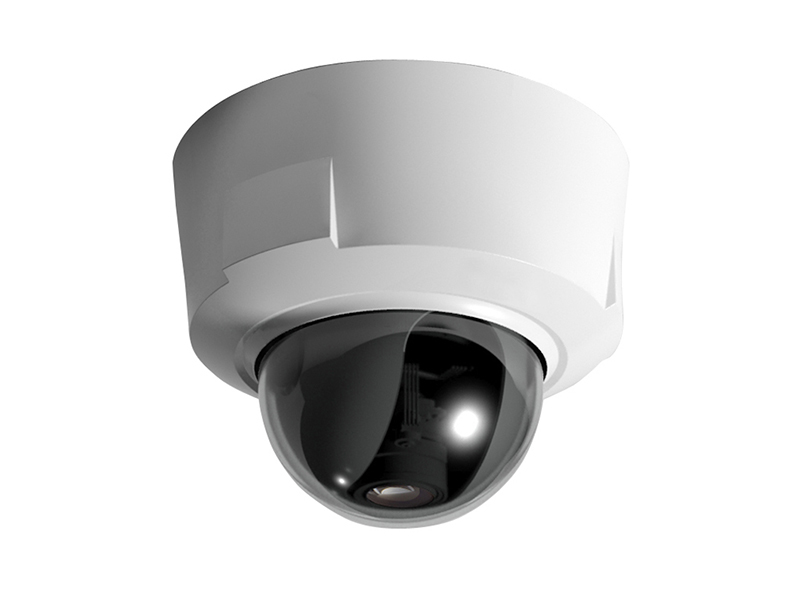

Neutron IPC HDB3100 IP HD Dome Kamera
Özellikler
Teknik Özellikler
| Model | DH-IPC-HDB3100P | DH-IPC-HDB3100N | ||
| Camera | ||||
| Image Sensor | 1/3 "CMOS 1.3megapixel Aptina | |||
| Effective Pixels | 1280 (H) x960 (V) | |||
| Scanning System | Progressive | |||
| Electronic ShutterSpeed | Auto / Manual 1/3 ~ 1/10000 | Auto / Manual 1/4 ~ 1/10000 | ||
| Min. Illumination | 0.1lux/F1.4 (color), 0.005Lux/F1.4 (B / W) | |||
| S / N Ratio | > 50 dB | |||
| Camera Features | ||||
| Day/Night | Auto (ICR) / Color / B / W | |||
| Backlight Compensation | Off / BLC / HLC / DWDR | |||
| White Balance | AUTO | |||
| Gain Control | Auto / Manual | |||
| Noise Reduction | 2D | |||
| Privacy Masking | Hasta 4 zonas | |||
| Lens | ||||
| Focal Length | 2,8 ~ 12 mm | |||
| Max Aperture | F1.4 | |||
| Focus Control | Manual | |||
| Angle of View | H: 92 º (Wide) ~ 27,2 ° (Tele) | |||
| Lens Type | Manual / Auto Iris (DC) | |||
| Mount Type | Consejo-en el tipo | |||
| Vídeo | ||||
| Compression | H.264 / MJPEG | |||
| Resolution | 1.3M (1280 x 960) / 720p (1280 × 720) / D1 (704 × 576) / CIF(352 × 288) / | 1.3M (1280 x 960) / 720p (1280 × 720) / D1 (704 × 480) / CIF (352 × 240) / | ||
| Frame Rate | Main Stream | 1.3M/720P (1 ~ 25/30fps) | ||
| Sub Stream | D1/CIF (1 ~ 25/30fps) | |||
| Bit Rate | H.264: 32K ~ 8192kbps, MJPEG: ~ 32K 12288Kbps | |||
| Audio | ||||
| Compression | G.711a / G.711u (64kbps) / PCM (128kbps) | |||
| Interface | 1/1 canal de entrada / salida | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, filtro IP, QoS, Bonjour | |||
| ONVIF | Ver ONVIF. 2.0 | |||
| Max. User Access | 10 usuarios | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Auxiliary Interface | ||||
| Memory Slot | Micro SD, 32GB máximo | |||
| Alarm | 1/1 canal de entrada / salida | |||
| General | ||||
| Power Supply | 12V CC, PoE (802.3af) | |||
| Power Consumption | <6W | |||
| Working Environment | -10 ° C ~ 60 ° C, 10% ~ 90% | |||
| Dimensions | Φ151mm × 119mm | |||
| Weight | 1.1kg | |||
Teknik Kısa
Çözünürlük : 1.3MP
Depolama : Var
