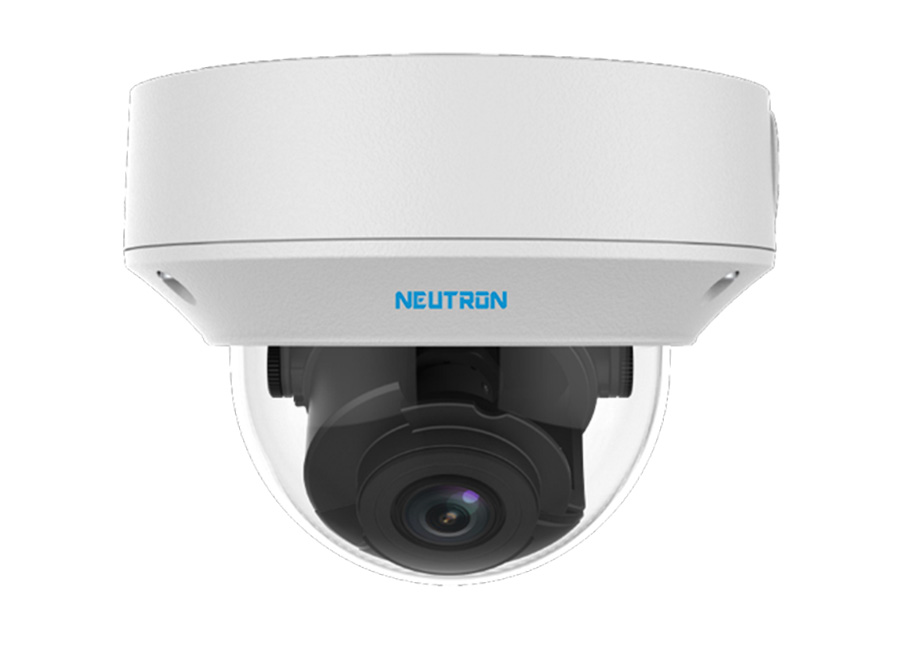

Neutron IPC3232ER3 DVZ28 C IP Dome Kamera
Özellikler
Teknik Özellikler
| IPC3232ER3-DVZ28-C | |||||
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |
| 12 | 186.2 | 74.5 | 37.2 | 18.6 | |
| Angle of View (H) | 94.0° ~ 28° | ||||
| Angle of View (V) | 56.7° ~ 14.4° | ||||
| Angle of View (O) | 122.2° ~ 34.4° | ||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) | ||||
| 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; | ||||
| Sub Stream: 2MP (1920*1080), Max 30fps; | |||||
| Third Stream: D1 (720*576), Max 30fps | |||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition | Face detection, Audio detection | ||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 7.2W | |||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | ||||
| Weight | 0.92kg (2.0lb) | ||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||
Teknik Kısa
Çözünürlük : 2MP (1080P)
