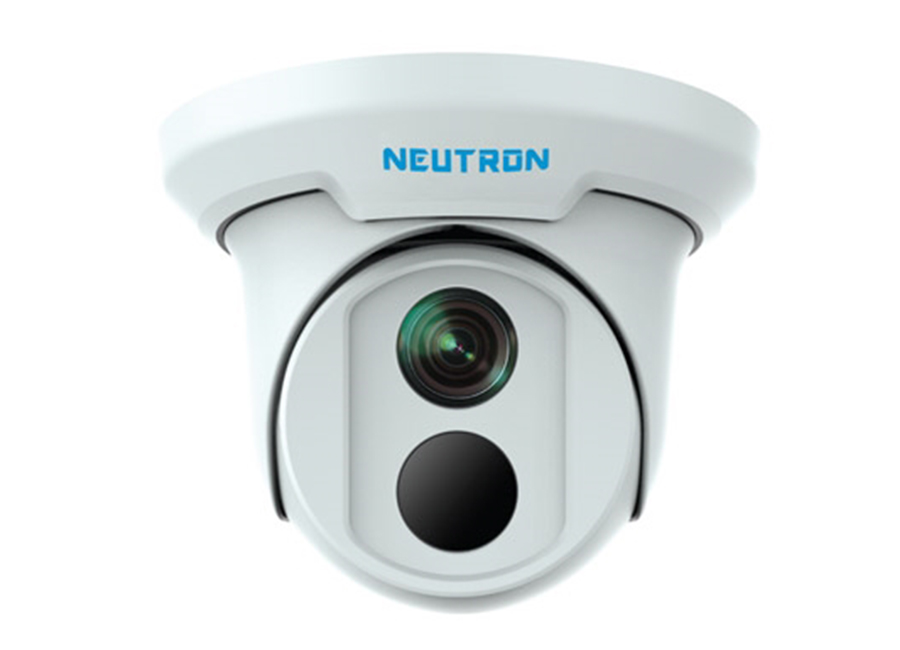

Neutron IPC3611SR3 PF60 IP Dome Kamera
Özellikler
Teknik Özellikler
Model | IPC3611SR3-PF28 | IPC3611SR3-PF36 | IPC3611SR3-PF60 |
Camera | |||
Sensor | 1/3", 1.3megapixel, progressive scan, CMOS | ||
Lens | 2.8mm@F1.8 | 3.6mm@F1.8 | 6mm@F1.8 |
Angle of View(H) | 105.2° | 79.7° | 51.6° |
Shutter | Auto/Manual, 1/6~1/100000 s | ||
Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR | ||
IR | 30m (98ft) IR range | ||
Day/Night | IR-cut filter with auto switch (ICR) | ||
WDR | Digital | ||
AWB(Auto white balance) | Auto/manual | ||
Gain Control | Auto/manual | ||
Noise Reduction | 2D/3D | ||
Video | |||
Max. Resolution | 1280×960 | ||
Video Compression | H.264/MJPEG | ||
Frame Rate | 960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps; | ||
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps | |||
Video Streaming | Triple | ||
Evaluative Metering | Supported | ||
OSD | Up to 8 OSDs | ||
Motion Detection | Up to 2 areas | ||
Privacy Mask | Up to 4 areas | ||
Network | |||
Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP | ||
Compatible Integration | ONVIF | ||
Interface | |||
Network | 10M/100M Base-TX Ethernet | ||
General | |||
Power | 12 V DC, or PoE (IEEE802.3 af) | ||
Power consumption: 3.5 W (5.5W with IR on) | |||
Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) | ||
Weight | 0.33 kg (0.73lb) | ||
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) | ||
Ingress Protection | IP67 |
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
