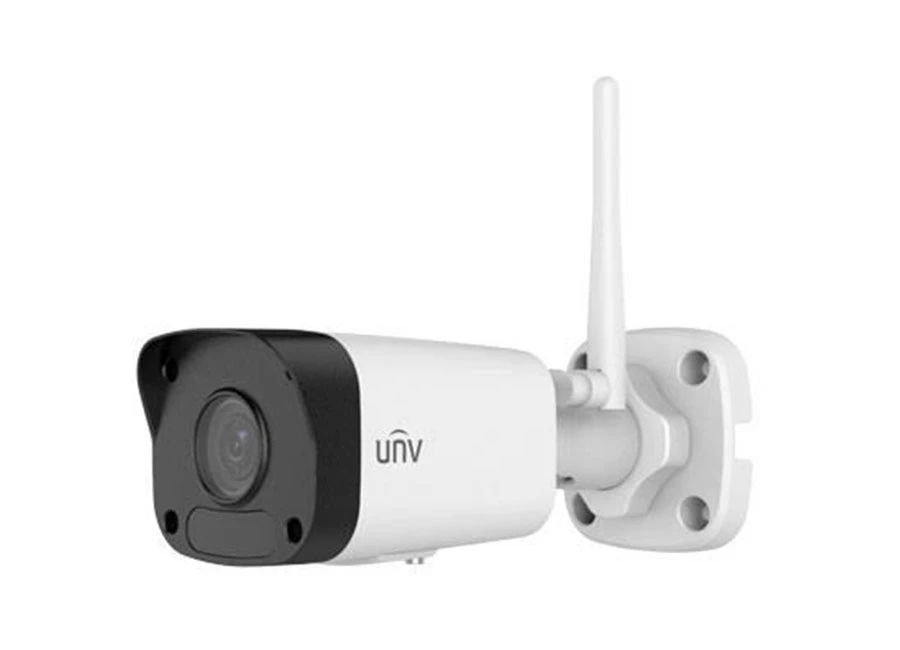

Uniview IPC2122SR3 F40W D IP Bullet Kamera
Özellikler
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Network
- ONVIF Conformance
- Wide temperature range:-30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Teknik Özellikler
| IPC2122SR3-F40W-D | |||||
| Camera | |||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.0mm@F2.0 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 4mm | 60 | 24 | 12.1 | 6 | |
| Angle of view(H) | 86.5° | ||||
| Angle of View (V) | 44.1° | ||||
| Angle of View (O) | 106.4° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Colour: 0.02 Lux (F2.0 AGC ON) | ||||
| 0 Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 20 fps; | ||||
| Sub Stream: 720P (1280×720): Max. 20 fps; | |||||
| Third Stream: 4CIF (704×576): Max. 20 fps | |||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,QoS | ||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | ||||
| Wi-Fi | |||||
| Wireless Standards | IEEE802.11b/g/n | ||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||
| Channel Bandwidth | 20 MHz Support | ||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK | ||||
| 802.11g/n: OFDM/HT | |||||
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | ||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps | ||||
| 802.11g: 14±1.5dBm @ 54Mbps | |||||
| 802.11n: 12.5±1.5dBm @150Mbps | |||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) | ||||
| 802.11g: -75dBm @54Mbps (Typical) | |||||
| 802.11n: -74dBm @150Mbps (Typical) | |||||
| Transmission Rate | 802.11b: 11Mbps | ||||
| 802.11g: 54Mbps | |||||
| 802.11n: up to 150Mbps | |||||
| Interface | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±25% | ||||
| Power consumption: Max 5.5 W | |||||
| Dimensions (L × W × H) | 162.6 × 62.4 ×62.7 mm (6.4” × 2.5” × 2.5”) | ||||
| Weight | 0.25 kg (0.55 lb) | ||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Reset Button | Supported | ||||
Uniview IPC2122SR3 F40W D IP Bullet Kamera Pdf Dosyası134.03 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
