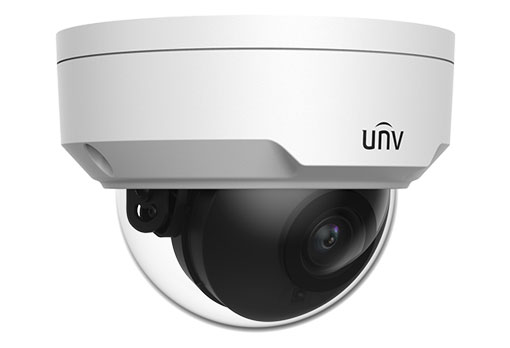

Uniview IPC324SS-DF28K IP Dome Kamera
Özellikler
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
Teknik Özellikler
| Camera | |||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F1.6 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63 | 25.2 | 12.2 | 6.3 | |
| 4.0 | 90 | 36 | 18 | 9.1 | |
| Angle of View (H) | 107.8° | ||||
| Angle of View (V) | 57.0° | ||||
| Angle of View (O) | 140.1° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate:3° ~ 360° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) | ||||
| 0Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 40m (131ft) IR range | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; | ||||
| Sub Stream: 2MP (1920*1080), Max 30fps; | |||||
| Third Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| 9:16 Corridor Mode | Support | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation | ||||
| EZView | |||||
| EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1.1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 | ||||
| UL: UL60950-1 | |||||
| FCC: FCC Part 15 | |||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.5W | |||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||||
| Net Weight | 0.43kg (0.94lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| surge protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
Irled : Var
