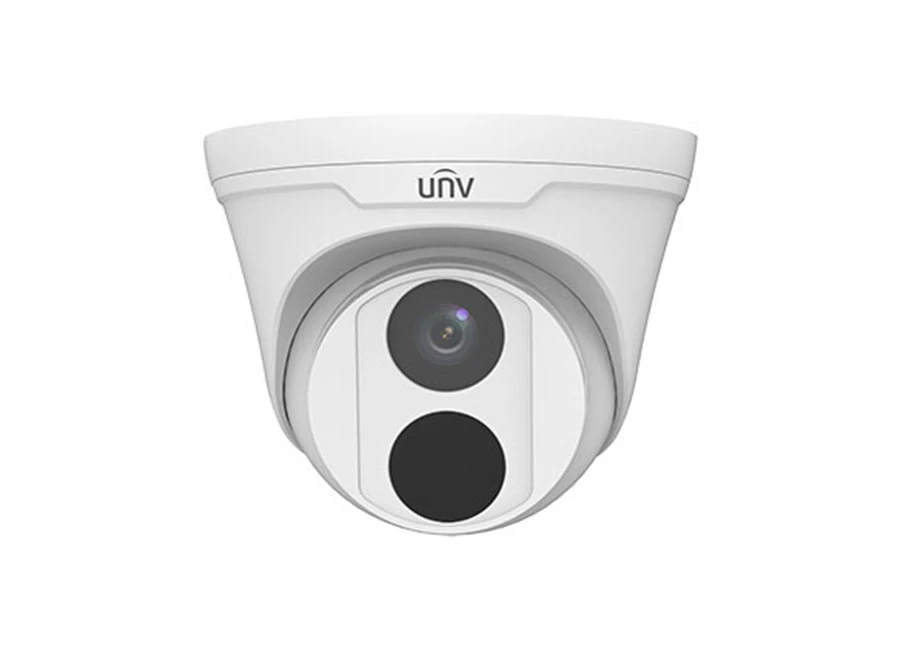

Uniview IPC3612LR3 UPF28 F IP Dome Kamera

Name: Uniview IPC3612LR3 UPF28 F IP Dome Kamera
Brand: Uniview

Optics

Network

Çözünürlük : 2MP (1080P)

IPC3612LR3-UPF28-F				IPC3612LR3-UPF40-F
Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6			4.0mm@F1.6
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8	42	16.8	8.4	4.2
	4.0	60	24	12	6
Angle of view (H)	112.7°			86.5°
Angle of View (V)	60.1°			44.1°
Angle of View (O)	146.5°			106.4°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°		Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.002Lux ( F1.6, AGC ON)
	0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 2MP (1920*1080), Max 30fps;
	Sub Stream: 4CIF (704*576), Max 30fps
	Third Stream: CIF (352*288), Max 30fps
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4.5W
Dimensions (Ø x H)	Φ118 x 96mm (Φ4.6” x 3.8”)
Weight	0.3kg (0.44lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
