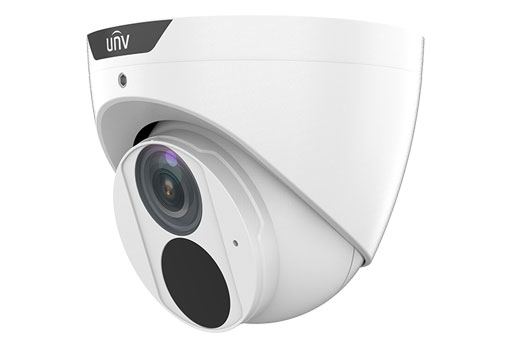

Uniview IPC3614SS-ADF28KM-I0 IP Dome Kamera
Özellikler
- 1/2.7’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 2688*1520@30fps in the main stream
- ROI (Region of Interest)
- ONVIF Conformance
- Built-in Mic
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- IP67 ingress protection
Teknik Özellikler
Camera | |||||
Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||
Lens | 2.8mm@F1.6 | ||||
Iris | Fixed | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.7ft) | 6.3(20.7ft) | |
4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | |
Field of View (H) | 95.8° | ||||
Field of View (V) | 51.5° | ||||
Field of View (D) | 124.5° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° | ||
Min. Illumination | Colour:0.002lux (F1.6, AGC ON) | ||||
0 lux with IR | |||||
WDR | 120dB | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
S/N | >56dB | ||||
IR Range | Up to 40m (131 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Defog | Digital Defog | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; | ||||
Sub Stream: 2MP (1920*1080), Max 30fps; | |||||
Third Stream: D1 (720*576), Max 30fps | |||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Supported | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Intelligent | |||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Exception Detection And Statistics | Object Removed, Object Left Behind | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Two-way Audio | N/A | ||||
Suppression | Supported | ||||
Sampling Rate | 8KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Client | EZStation | ||||
EZLive | |||||
Ezview | |||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | N/A | ||||
Alarm I/O | N/A | ||||
Built-in Mic | Supported | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) | ||||
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) | ||||
CB (IEC 62368-1:2014) | |||||
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General | |||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||
Power consumption: Max 4W | |||||
Dimensions (Ø x H) | Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’) | ||||
Weight | 0.43kg(0.95lb) | ||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 2KV |
Uniview IPC3614SS-ADF28KM-I0 IP Dome Kamera Pdf Dosyası676.52 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
Irled : Var
