Açıklama

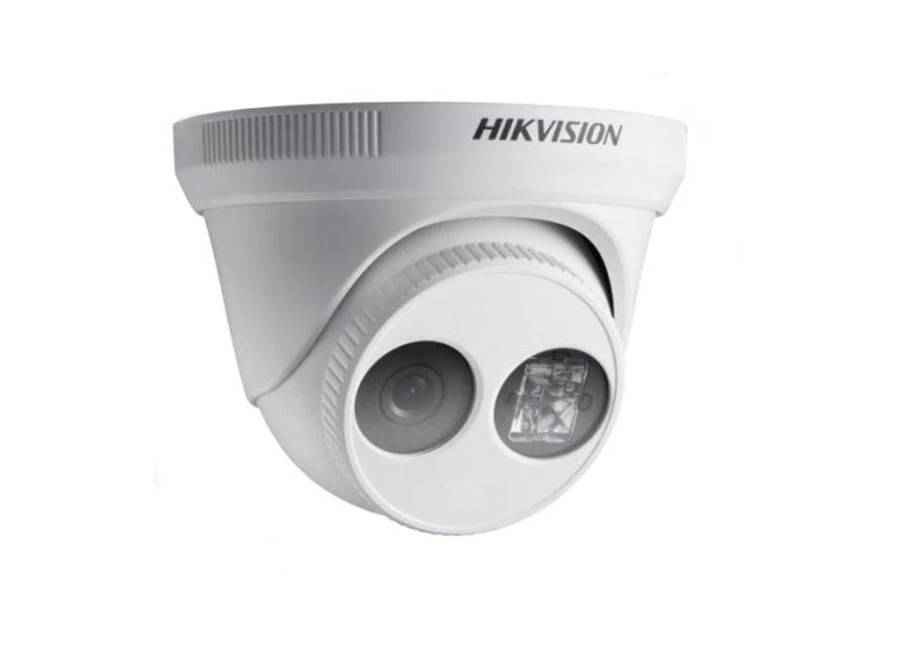

Hikvision DS 2CD2321G0 I/NF IR IP HD Turret Kamera

Özellikler

1/2.8" Progressive Scan CMOS
1920 × 1080@30fps
2.8/4/6 mm fixed lens
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
H.265+, H.265, H.264+, H.264
120 dB WDR
2 Behavior analyses
BLC/3D DNR/ROI
3-Axis adjustment

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
Min. Illumination	B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	2.8 mm: horizontal FOV: 103°, vertical FOV: 62°, diagonal FOV: 118°
	4 mm: horizontal FOV: 90°, vertical FOV: 48°, diagonal FOV: 109°
	6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
Lens Mount	M12
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Fixed
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub Stream	60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Image Enhancement	BLC/3D DNR
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
BLC	Yes, zone configurable
ROI	Support 1 fixed region for main stream and sub stream separately
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max: 6.5W
Power Consumption	12 VDC, 0.4 A, max. 5.0W
Weather Proof	IP67
IR Range	Up to 30m
Dimensions	Camera: Φ 114.6 × 82.1 mm (Φ 4.5" × 3.2")
Dimensions	With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight	Camera: approx. 400 g (0.9 lb.)
Weight	With package: approx. 500 g (1.1 lb.)
