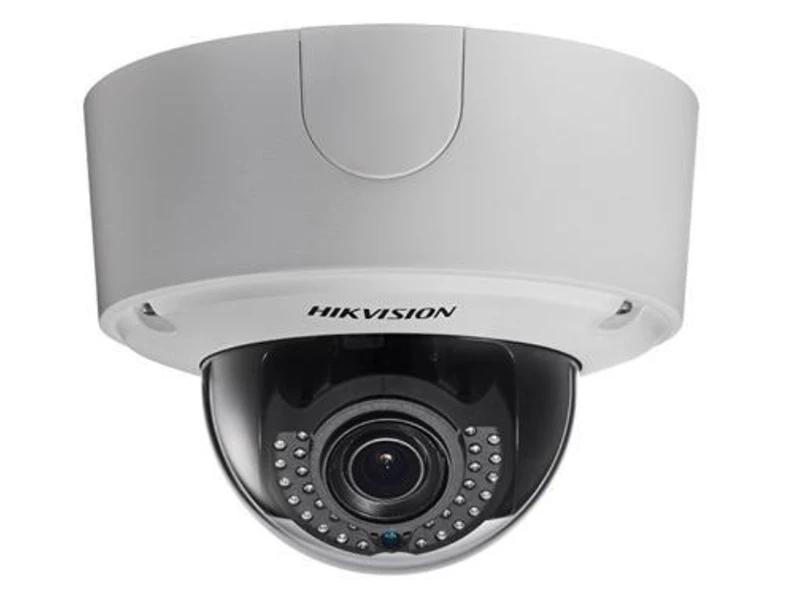

Hikvision DS 2CD4535FWD IZH IP Dome Kamera

Özellikler

1/2.8” Progressive Scan CMOS
3MP @45fps frame rate
Slow shutter
120dB WDR
3D DNR
-H: Heater
Support 128G on-board storage
DC12V/AC24V/PoE

Teknik Özellikler

Kamera
Görüntü Sensörü	1/2.8" Progressive Scan CMOS
Minimum Aydınlatma	0.005 Lux @(F1.2,AGC ON), 0.007 Lux @(F1.4,AGC ON), Lux with IR
Objektif Hızı	1 s to 1/100,000 s
Slow shutter	Support
Lens	2.8-12mm @ F1.4, 8-32mm @ F1.4
Lens Kurulumu	AF automatic focusing and motorized zoom lens
Oto-iris	DC drive
Ayarlanan Aralık	Pan:0° - 355°, Tilt: ° - 75°, Rotation: ° - 355°
Gündüz & Gece	IR cut filter with auto switch
Geniş Dinamik Aralık	120 dB
Sıkıştırma Standardı
Video Sıkıştırma	H.264/MJPEG
H.264 Türü	Baseline Profile / Main Profile / High Profile
Video Bit Hızı	32Kbps~16Mbps
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Görüntü
Maksimum Çözünürlük	2048×1536
Ana Akış	50Hz: 45fps(2048 × 1536), 50fps@(1920 × 1080, 1280 x 720)
Ana Akış	60Hz: 45fps(2048 × 1536), 60fps@(1920 × 1080, 1280 x 720)
Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
Üçüncül Akış	50/60Hz: 10fps@1280 ×720
Görüntü İyileştirme	BLC/3D DNR/ROI/Defog
Görüntü Ayarlama	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Görüntü Düzeltme	Support
Bölgesel Kırpma	Support
Resim Yerleşimi	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Gündüz / Gece Anahtarı	Auto/Schedule/Triggered by Alarm In
Ağ
Ağ Depolama	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Güvenlik	User Authentication, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Arayüzü
Ses	1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone
İletişim Arayüzü	1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface
Alarm	1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Video Çıkışı:	1Vp-p Composite Output (75 Ω, BNC)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Ses
Çevre Gürültü Filtreleme	Support
Ses I / O	Support dual audio track, stereo
Ses Örnekleme Hızı	16kHz / 32kHz / 44.1kHz / 48kHz
Akıllı Özellik-set
Davranış Analizi	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya:	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılamaları	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Tanıma	Face detection recognition
İstatistik	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
Genel
Çalışma Sıcaklığı	-30 °C – 60 °C (-22 °F – 140 °F)
	Humidity 95% or less (non-condensing)
	-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Güç Kaynağı	DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at)
GÜç Tüketimi	Max. 12 W -H (Smart Heater): 17W
Darbe Koruma	IK10
Weather Proof	IP66
IR Aralık	40m(2.8~12mm)/50m(8~32mm)
Boyutlar	Φ 164.9 × 127 mm(Φ 6.49” ×5”)
Ağırlık	2100g (4.62lbs)
