Açıklama

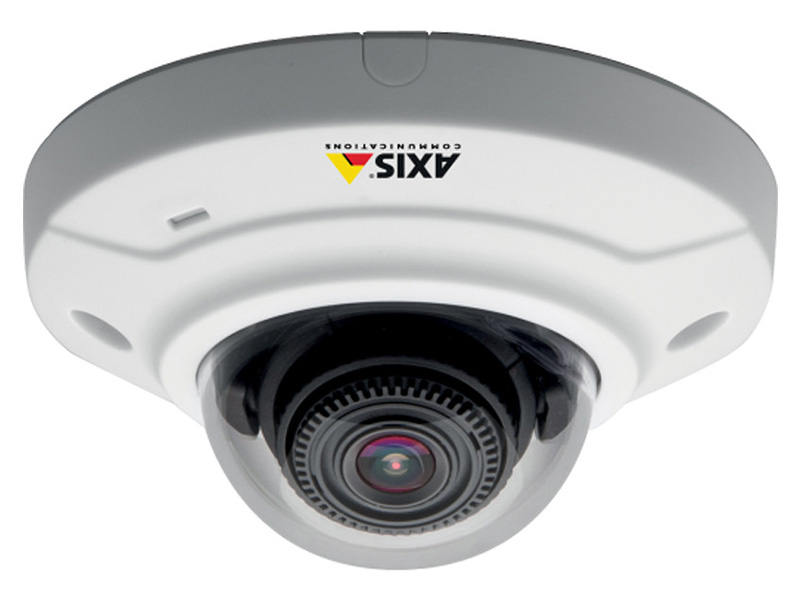

Axis M3006 V IP HD Dome Kamera
Özellikler
- Network Kamera
- 1/3.6” (effective) progressive scan RGB CMOS,
- 0.6 - 200000 lux, F2.8 Hassasiyet,
- FTP, HTTP, network share ve email dosya yükleme
- E-mail, HTTP ve TCP olay bildirimi
- Ultra kompakt saldırılara karşı dayanıklı tasarım
- 3MP HDTV Görüntü Kalitesi
- Easy, flexible installation
- Korridor format
- Yerel Kayıt
- Çoklu H.264 yayın akışı
- Power over Ethernet
Teknik Özellikler
| Video Input |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Digital Video Capture Resolution : 160 x 90 , 2048 x 1536 |
| Digital Video Format : AVC , H.264 , MJPEG |
| Features : AXIS Video Hosting System (AVHS) , Backlight compensation , Brightness control , Color control , Contrast control , Digital image rotation , Digital PTZ function , E-mail alerts , Image mirror , Motion Detection Technology , ONVIF support , Sharpness control , Virtual Pan/Tilt/Zoom , White balance , Wide Dynamic Range (WDR) |
| Frame Rate : 30 frames per second |
| Max Digital Video Resolution : 2048 x 1536 |
| Panning Range (degree) : 180 |
| Shutter Speed (Max) : 1/30500 sec |
| Shutter Speed (Min) : 2 sec |
| Tilting Range (degree) : 45 |
| Video Modes : 1080p |
| Interface Required |
| Connector Type : RJ-45 |
| Interface : Ethernet 10Base-T/100Base-TX |
| Total Qty : 1 |
| Type : Network / power |
| Optical Sensor |
| Optical Sensor Size : 1/3.6" |
| Optical Sensor Size (metric) : 7.1 mm ( 1/3.6" ) |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/3.6" |
| Sensor Size (metric) : 7.1 mm ( 1/3.6" ) |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMB , SMTP , SNMP 1 , SNMP 2c ,SNMP 3 , SOCKS , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Battery |
| Form Factor : None |
| Environmental Parameters |
| Humidity Range Operating : 15 - 85% (non-condensing) |
| Max Operating Temperature : 113 °F |
| Min Operating Temperature : 32 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : M3006-V Network Camera |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, min, degree) : 134 |
| Lens Iris : Fixed iris |
| Lens Mount : M12 mount |
| Min Focal Length : 1.6 mm |
| Miscellaneous |
| Color Category : White |
| Compliant Standards : C-Tick , CISPR 22 , EN 60950-1 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , IEC 60950-1 , IEC 62262 ,IK08 , IP42 , KCC Class B , VCCI Class B ITE |
| Included Accessories : Mounting kit |
| Power Device |
| Power Consumption Operational : 4.5 Watt |
| Service |
| Support Details Full Contract Period : 1 year |
| Support Details Type : Limited warranty |
| Video Capture |
| Frame Rate : 20 fps |
| Image Resolution : 2048 x 1536 |
| Digital Camera |
| Supported Flash Memory : SD Memory Card , SDHC Memory Card , SDXC Memory Card |
| Dimensions & Weight |
| Depth : 5.2 in |
| Height : 5.2 in |
| Weight : 22.57 oz |
| Width : 3.3 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Protection : Dustproof / vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F2.8 |
| Minimum Illumination (lux) : 0.6 |
| Flash Memory |
| Installed Size : 128 MB |
| Power |
| Low Voltage Power : PoE |
| RAM |
| Installed Size : 512 MB |
| Service & Support |
| Type : 1 year warranty |
Axis M3006 V IP HD Dome Kamera Pdf Dosyası4.12 MB
Teknik Kısa
Çözünürlük : 3MP
Depolama : Var
