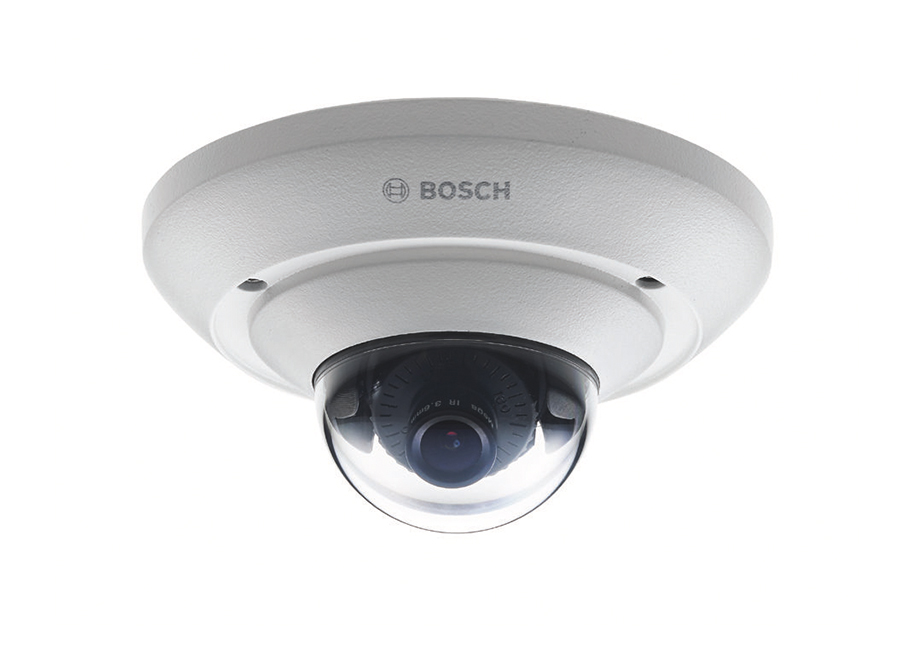

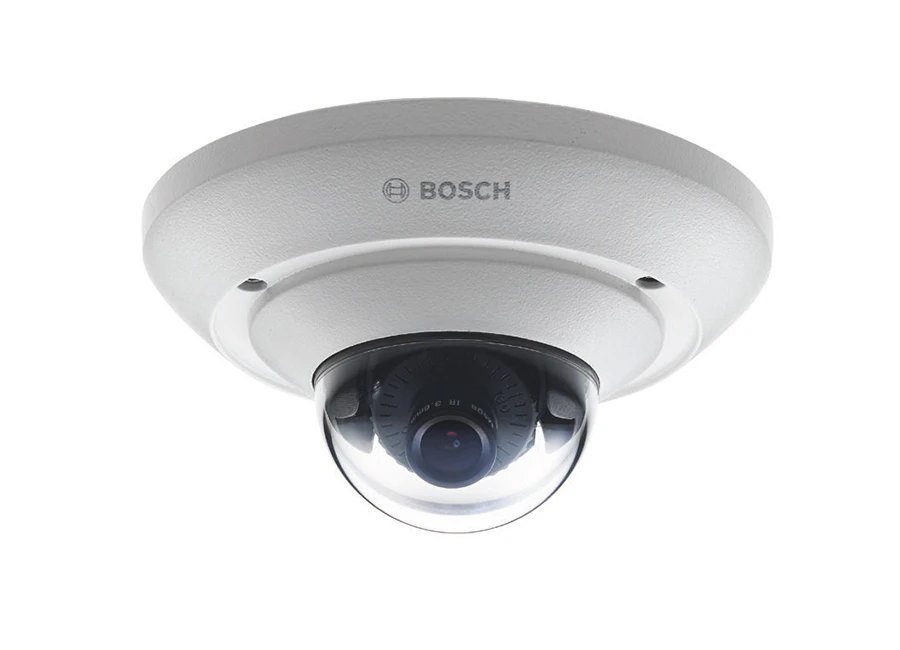

Bosch FLEXIDOME IP micro 5000 IVM 5MP IP HD Dome Kamera

Özellikler

Compact and stylish microdome for in-vehicle mounting
5MP resolutions
Regions of interest and E-PTZ
iDNR reduces bandwidth requirements and storage costs
EN 50155 and ISO16750-3 compliant

Teknik Özellikler

Input voltage	Power-over-Ethernet (48 VDC nominal)
Power consumption	3.84 W (max)
PoE	IEEE 802.3af (802.3at Type 1) Power level: Class 1
Sensor type	1/2.7-inch CMOS (1080p) 1/3-inch CMOS (5MP)
Sensor pixels	1920 x 1080 (1080p) 2592 x 1944 (5MP)
1080p Sensitivity (3200 K, reflectivity 89%, 30IRE)	1.0 lx
5MP Sensitivity (3200 K, reflectivity 89%, 30IRE)	2.0 lx
Dynamic range	76 dB (1080p) 65 dB (5MP)
Electronic Day/Night	Auto, Color, Monochrome
Shutter speed	Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000 for 1080p) Fixed (1/12 to 1/15000 for 5MP)
Video resolution	1080p, 720p, 480p, 432p, 240p, 288p, 144p (1080p version) 5 Megapixels, 480p (5MP version)
Aspect ratio	16:9 (1080p) 4:3 (5MP)
Video compression	H.264 MP (Main Profile); M-JPEG
Max. frame rate	30 ips (1080p) 12 ips (5MP) (M-JPEG frame rate can vary depending on system loading)
Video Settings	Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, Sharpness level, Contrast enhancement, Backlight Compensation, Privacy Mask, Motion detection, Tamper alarm, Upright mode, Pixel counter

Lens type	2.5 mm fixed, F2.8
Lens mount	Board mounted
View angle (H x V)	135° x 75° (NUC-51022) 105° x 79° (NUC-51051)
Internal RAM	10 s pre-alarm recording
Memory card slot	Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording)
Recording	Continuous recording, ring recording. alarm/events/schedule recording
Unit Configuration	Via web browser or Configuration Manager
Firmware update	Remotely programmable
Software viewer	Web browser, Bosch Video Client, or third party software
Protocols	IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
Encryption	TLS 1.0, SSL, DES, 3DES
Ethernet	10/100 Base-T, auto-sensing, half/full duplex
Ethernet connector	M12 D-coded female
Connectivity	ONVIF Profile S, Auto-MDIX
3-axis adjustment (pan/tilt/rotation)	±175º / ±70º / ±180º
Dimensions	Diameter: 110 mm (4.33 in) Height: 55 mm (2.17 in)
Weight	320 g (11.28 oz) approx.
Color	RAL 9017, RAL 9003
IP protection	IP66
Impact protection	IK08
Operating temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF) for continuous operation; -40 ºC to +85 ºC (-40 ºF to +185 ºF) based on EN 50155 Climatic and Temperature Class TX-34 ºC to +74 ºC (-30 ºF to +165 ºF) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile
Storage temperature	-40 ºC to +85 ºC (-40 ºF to +185 ºF)
Humidity	0% to 95% relative humidity (non condensing)
