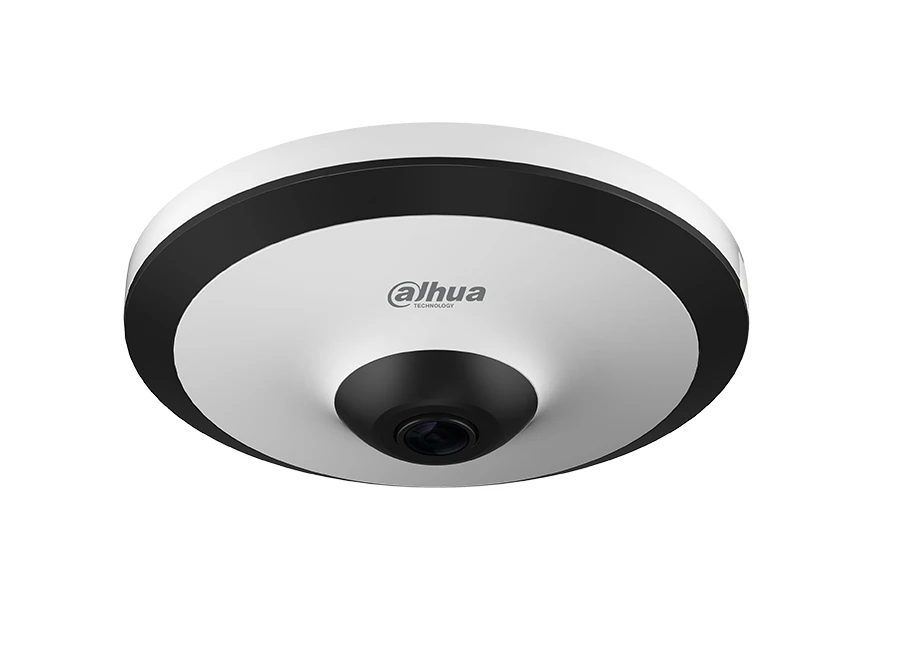

Dahua IPC EW5531 AS IR Panoramik Ip Kamera

Özellikler

1/2.7” 5Megapixel progressive scan STARVIS™ CMOS
H.265/H.264 triple-stream encoding
Max 25fps@5M(2592×1944)
Multiple dewarped Mode
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart detection
Intelligent Function
Max. IR LEDs length 10m
Micro SD memory, PoE

Teknik Özellikler

Camera
Image Sensor	1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels	2592(H)x1944(V)
RAM/ROM	512MB/32MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.006Lux/F2.0( Color,1/3s,30IRE)
	0.02Lux/F2.0( Color,1/30s,30IRE)
	0Lux/F2.0(IR on)
IR Distance	Distance up to 10m(33ft)
IR On/Off Control	Auto/ Manual
IR LEDs	3
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	1.4mm
Max. Aperture	F2.0
Angle of View	H: 180˚, V:180˚
Optical Zoom	N/A
Aperture type	Fixed
Close Focus Distance	N/A
DORI Distance	Detect	Observe	Recognize	Identify
	28m(92ft)	11m(36ft)	6m(19ft)	3m(9ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	N/A
Intelligence
IVS	Tripwire, Intrusion
Advanced Intelligent Functions	Heat Map
Video
Compression	H.265/H.264/H.264H/MJPEG(Sub Stream)
Smart Code	Support H.265+/H.264+
Streaming Capability	3 Streams
Resolution	5M(2582×1944)/ 3M(2048x1536)/ UXGA(1600x1200)/ 1.3M(1280x960)/ 1080P(1920x1080)/ 720P(1280X720)/D1(704×576/VGA(640X480)/ CIF(352×288)
Frame Rate	Main Stream: 5M(1~25fps)
	Sub Stream: D1(1 ~ 25/30fps)
	Third Stream: D1(1 ~ 10/17fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3Kbps~ 40960Kbps
	H.264: 3Kbps~ 40960Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	N/A
Smart IR	Support
Defog	N/A
Digital Zoom	16x
Flip	N/A
Mirror	N/A
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/PCM
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; RTMP
Interoperability	ONVIF, CGI, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS
	Local PC for instant recording
	Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000)
	UL:UL60950-1
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out, 1 Built-in Mic
RS485	N/A
Alarm	1 channel In: 5mA 5VDC
	1 channel Out: 300mA 12VDC
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	DC12V: 2.7W 8.2W(IR on)
	PoE: 3.3W 10.1W(IR on)
Environmental
Operating Conditions	-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Strorage Conditions	-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Ingress Protection	N/A
Vandal Resistance	N/A
Construction
Casing	Metal+Plastic
Dimensions	Φ126.2mm×44.7mm(Φ4.9”×1.8”)
Net Weight	0.28kg(0.6lb)
Gross Weight	0.41kg(0.9lb)
