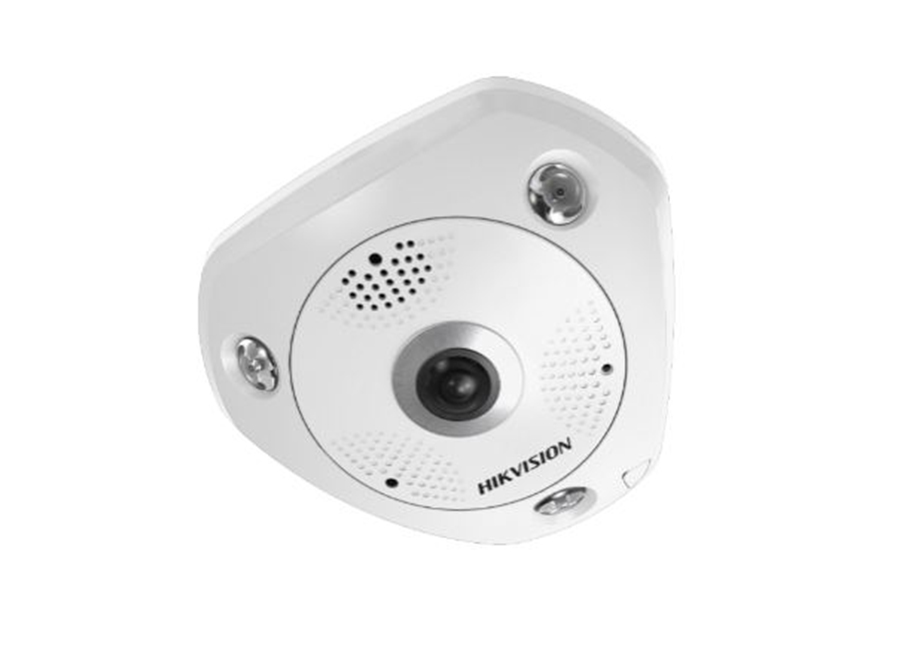

Hikvision DS 2CD6365G0 I IR IP Fisheye Kamera
Özellikler
- 1/1.8” Progressive Scan CMOS
- Maximum 3072 × 2048 @30fps
- Up to 15 live view display modes
- 120 dB WDR
- Up to 15m IR range
- Built-in microphone and speaker
- Smart features
- 6 behavior analyses, and 3 exception detections
- Heat map with deep learning algorithm
- Intersection analysis by deep learning
Teknik Özellikler
Camera | |
Image Sensor | 1/1.8" Progressive Scan CMOS |
İşaret Sistemi | PAL/NTSC |
Minimum Aydınlatma | Color: 0.047 Lux @ (F2.6, AGC ON), |
B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR | |
Slow shutter | Yes |
Objektif Hızı | 1 s to 1/100,000 s |
Lens | 1.27 mm |
Lens Mount | M12 |
Day& Night | IR Cut Filter |
Wide Dynamic Range | 120 dB |
Compression Standard | |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
H.264 Türü | Baseline Profile/ Main Profile /High Profile |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM |
Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 3072 x 2048 |
Ana Akış | 50Hz: 25fps (720 × 720, 720 × 480) |
60Hz: 30fps (720 × 720, 720 × 480) | |
Çerçeve Hızı | 50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) |
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280) | |
Görüntü İyileştirme | BLC, HLC, defog, 3D DNR |
Image Settings | Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
Resim Yerleşimi | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Network | |
Network Storage | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering, illegal login, HDD full, HDD error |
Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Intelligent | |
People Counting | Support |
Heat Map | Support |
Interface | |
Audio | 2 built-in microphones, 1 built-in speaker, mono sound; -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm) |
Alarm | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
Dahili Depolama | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Reset Butonu | Yes |
General | |
Power Supply | 12 VDC±20%, PoE (802.3at, class 4),-S model: two-core terminal block, Without –S model: Φ 5.5 × 2.1 mm coaxial power plug |
GÜç Tüketimi | 12 VDC, 1 A, max. 12.5 W |
PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W | |
Impact Protection | IK10 |
Weather Proof | IP67 |
Boyutlar | Without –V model: 167.4 × 152.8 × 50 mm (6. 6" × 6" × 2") |
With –V model: 167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2") | |
Ağırlık | Approx. 1400 g (3.09 lbs) |
Hikvision DS 2CD6365G0 I IR IP Fisheye Kamera Pdf Dosyası1.05 MB
Hikvision DS 2CD6365G0 I IR IP Fisheye Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.74 MB
Teknik Kısa
Çözünürlük : 6MP
Irled : Var
